Product Detailed Parameters
- Description：LINE FILTER 12A CHASSIS MOUNT
- Series：FN 530
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：12:00 AM
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block, Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：288 V
- Voltage - Rated AC (Phase to Phase)：500 V
Download product information
Overview

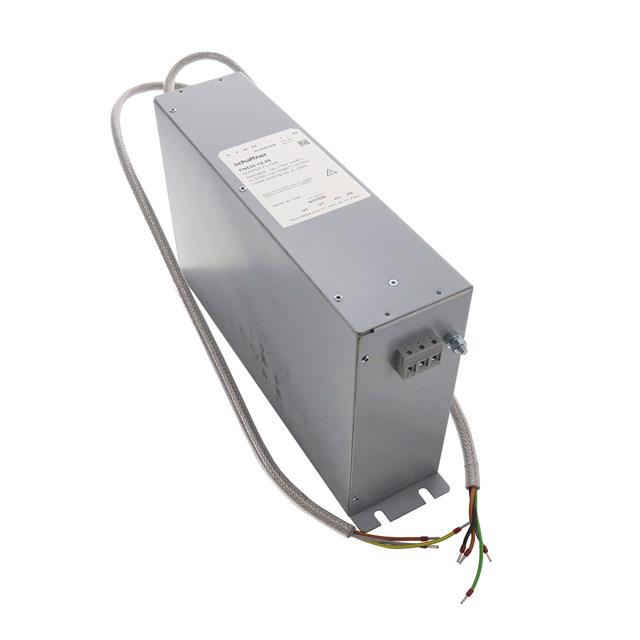

The Schaffner FN530-12-99 is a three-phase power line filter designed for chassis mounting. It features a rated current of 12 A and operates at voltages up to 480 VAC or 530 VAC depending on the specific configuration variant. The component utilizes busbar termination for secure electrical connections. It is engineered to mitigate electromagnetic interference in industrial environments, providing robust performance for high-current applications requiring reliable power conditioning.
Feature Summary
- Provides effective electromagnetic interference mitigation for three-phase systems
- Engineered for high-current industrial power line filtering applications
- Features durable chassis mount construction with busbar termination
Applications
- Industrial automation equipment power conditioning
- Climate control system power input filtering
- High-current machinery electromagnetic compatibility enhancement
Procurement Notes
Verify the exact voltage rating (480VAC vs 530VAC) against the specific datasheet revision, as suffix variations may exist within the FN530 series. Confirm that the busbar termination style matches your panel design requirements. Ensure compliance with relevant regional safety certifications required for your final assembly before procurement.
Selection Notes
Select this model when a three-phase filter with a 12A continuous current rating is required. The chassis mount form factor suits enclosed industrial panels. Verify that the busbar connection method aligns with available space and mechanical constraints. Consider thermal management requirements given the high current handling capability of the component.
Part Context
This component belongs to the Schaffner FN530 series of three-phase power line filters. The series is characterized by high current ratings and robust construction suitable for demanding industrial environments. It complements other Schaffner solutions like the FN3288 series, offering specialized filtering for higher current demands compared to standard terminal block models.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guide for verified alternatives.
