Product Detailed Parameters
- Description：LINE FILTER 16A CHASSIS MOUNT
- Series：FN 530
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：16 A
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block, Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：288 V
- Voltage - Rated AC (Phase to Phase)：500 V
Download product information
Overview

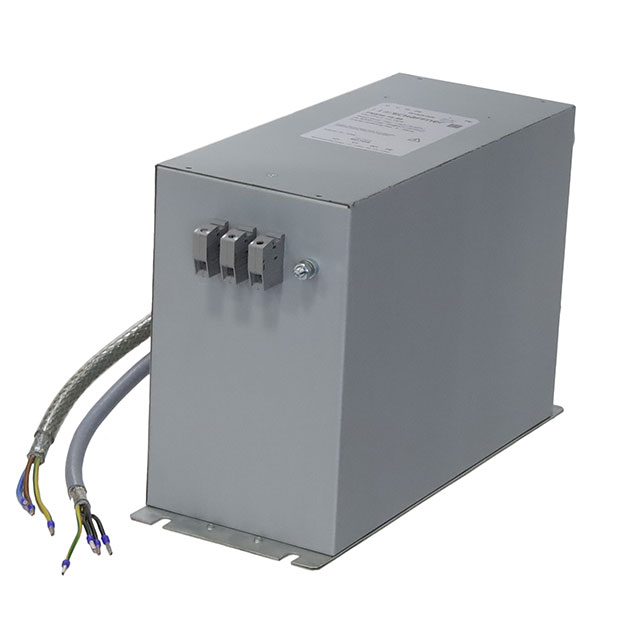

The FN530-16-99 is a three-phase (Delta) EMC/EMI line filter module manufactured by Schaffner. It features a high-current terminal output design with a rated current of 16 A and a voltage rating of 480 VAC. The unit utilizes a chassis mount installation style and employs terminal block connections for secure wiring. This component is engineered to provide robust electromagnetic interference mitigation in industrial environments, ensuring compliance with emission standards while maintaining stable power quality.
Feature Summary
- Three-stage filtering architecture for enhanced noise attenuation
- High-current terminal output configuration for efficient power handling
- Chassis mount construction for durable industrial integration
Applications
- Industrial automation systems
- Climate control equipment
- Power electronics inverters
Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to confirm terminal type and mounting configuration. Ensure compatibility with the target system's voltage and current requirements before procurement. Cross-reference the part number with official TE Connectivity / Schaffner documentation to validate authenticity and technical specifications.
Selection Notes
Select this model for applications requiring three-phase Delta configuration with a 16 A current capacity. Consider the chassis mount form factor and terminal block interface when designing the enclosure layout. Evaluate leakage current limits and insertion loss characteristics against specific regulatory standards applicable to the end-use environment.
Part Context
This component belongs to the FN530 series of power line filters designed for demanding industrial applications. The series offers various current ratings and connection options to accommodate different power distribution needs. The FN530-16-99 specifically addresses scenarios requiring reliable EMI suppression in high-current three-phase circuits.
Replacement Considerations
Consult the official Schaffner replacement guide for direct equivalents. Verify that any substitute maintains identical electrical ratings, mounting dimensions, and terminal configurations to ensure seamless integration without redesigning the host system.
