Product Detailed Parameters
- Description：LINE FILTER 4A CHASSIS MOUNT
- Series：FN 530
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：4:00 AM
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block, Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：288 V
- Voltage - Rated AC (Phase to Phase)：500 V
Download product information
Overview

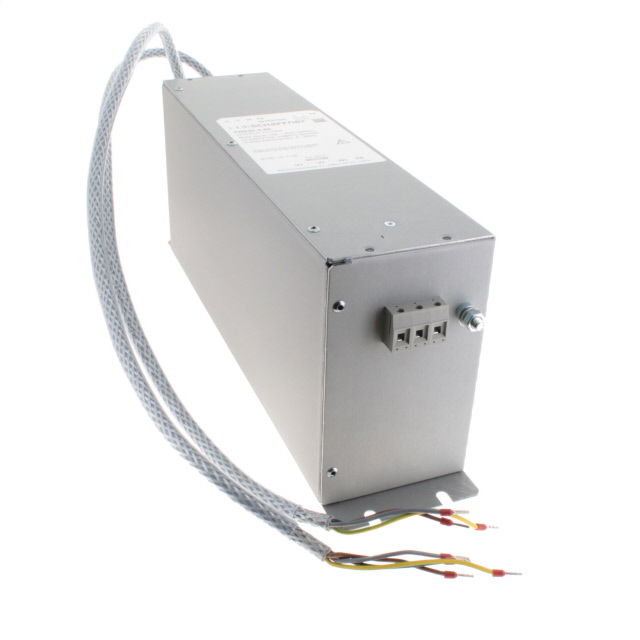

The Schaffner FN530-4-99 is a three-phase single-stage power line filter designed for chassis mounting. It features a rated voltage of 480 VAC and a current rating of 4 A. The component utilizes busbar termination for secure electrical connections. Its operating frequency range spans from 6 Hz to 20 kHz. The unit weighs approximately 10.469 kg and is identified by the alias part number 800568-SF.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power lines
- Engineered for high-current terminal output applications
- Constructed with robust chassis mount design for industrial stability
Applications
- Servo drive systems requiring DC bus link filtering
- Industrial power conditioning equipment
- High current inverter frequency conversion units
Procurement Notes
Verify technical specifications against official datasheets before integration, as this component may be subject to factory special order status. Confirm compliance requirements such as UL, CSA, and IEC/EN standards relevant to your specific deployment region. Ensure mechanical fitment aligns with chassis mounting constraints and busbar interface dimensions. Cross-reference the alias number 800568-SF during sourcing to prevent procurement errors.
Selection Notes
Select this model when a 4 A capacity at 480 VAC is required for three-phase noise reduction. The busbar termination style dictates compatibility with specific busbar geometries rather than standard wire leads. Consider the physical weight and chassis mounting requirements for structural support. Evaluate the 6 Hz to 20 kHz operational bandwidth against the specific harmonic frequencies present in the target power system.
Part Context
This component belongs to the FN530 series of power line filters manufactured by TE Connectivity / Schaffner. The series is characterized by single-stage filtration capabilities for three-phase applications. Similar models within the family include variants with different current ratings, such as the FN530-8-99 and FN530-12-99, which share similar form factors but differ in amperage handling.
Replacement Considerations
Cross-reference with part number 800568-SF for equivalent identification. Verify that substitute components maintain the same 480 VAC rating, 4 A current capacity, and busbar termination style to ensure mechanical and electrical compatibility.
