Product Detailed Parameters
- Description：LINE FILTER 250VAC 1A CHASS MNT
- Series：FN 610
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：1:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：3mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

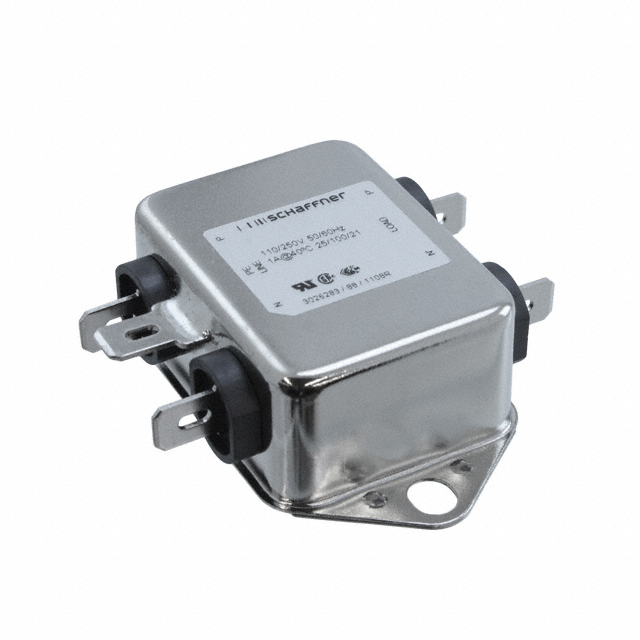

The Schaffner FN610-1-06 is a single-phase power line filter module designed for chassis mounting. It supports a rated current of 1A and operates at voltages up to 250V AC/DC across a frequency range of 0Hz to 400Hz. The unit utilizes quick-connect terminals for circuit integration. Key electrical parameters include a capacitance value of 100nF and an inductance of 600μH, with a maximum leakage current of 0.74mA. It functions within a temperature range of -25°C to 100°C.
Feature Summary
- Provides electromagnetic interference suppression for general-purpose applications
- Features a compact chassis-mount design for efficient space utilization
- Utilizes quick-connect terminals for simplified wiring and assembly
Applications
- General purpose electronic equipment filtering
- Power supply input stages
- Chassis-mounted industrial control systems
Procurement Notes
Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm compatibility. Ensure that the voltage, current, and terminal type requirements match the target application. Cross-reference datasheets for thermal and electrical ratings before procurement.
Selection Notes
Select this component for single-phase applications requiring low-current filtering. Verify that the chassis mounting style and quick-connect terminals align with the system's mechanical and electrical interface constraints. Confirm operating temperature ranges meet environmental specifications.
Part Context
This component belongs to the FN610 series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is characterized by its economic design for general-purpose EMI suppression in single-phase power lines.
FAQ
What is the maximum rated current for the FN610-1-06?
The maximum rated current is 1A.
What type of terminals does this filter use?
It uses quick-connect terminals for installation.
