FN610-10-06

Overview

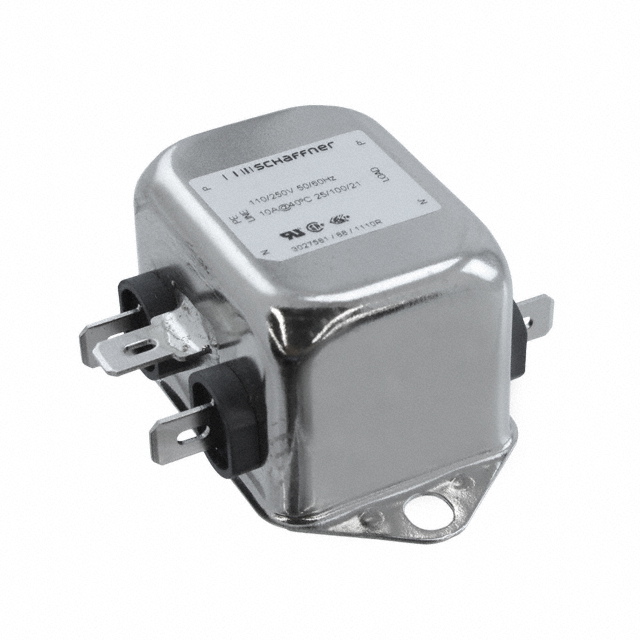

The Schaffner FN610-10-06 is a single-phase EMI power line filter designed for chassis mounting. It features a rated current of 10A and operates at 250VAC. The unit utilizes fast-on connections with 0.250-inch terminals for circuit board integration. This component provides electromagnetic interference suppression for general-purpose applications, ensuring compliance with standard emission requirements in commercial equipment.

Feature Summary

• Provides effective attenuation of conducted electromagnetic interference on AC power lines
• Designed for direct chassis mounting to ensure stable mechanical installation
• Integrates fast-on terminal connections for simplified wiring and assembly

Applications

• General purpose electronic equipment requiring EMI suppression
• Commercial machinery with sensitive control circuits
• Industrial devices needing reliable AC power line filtering

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before procurement. Confirm that the chassis mounting style and fast-on terminal dimensions match your design constraints. Check for RoHS compliance status if required by your manufacturing standards. Ensure the supplier provides valid certification documents for regulatory adherence.

Selection Notes

Select this model when a 10A capacity and 250VAC rating are sufficient for the load. Consider the chassis mounting requirement as it differs from panel or PCB-only options. Evaluate the fast-on connection type against available mating connectors. Compare insertion loss characteristics with other series models if higher attenuation is needed.

Part Context

This component belongs to the Schaffner FN610 series of single-phase line filters. These filters are engineered for cost-effective EMI suppression in various electronic assemblies. The series typically offers standardized ratings to simplify inventory management for manufacturers designing commercial and industrial power supplies.

Replacement Considerations

Check for updated part numbers within the same series due to potential product lifecycle changes. Verify compatibility with existing mounting hardware and terminal specifications. Consult manufacturer documentation for any superseding components that maintain identical electrical and mechanical parameters.
