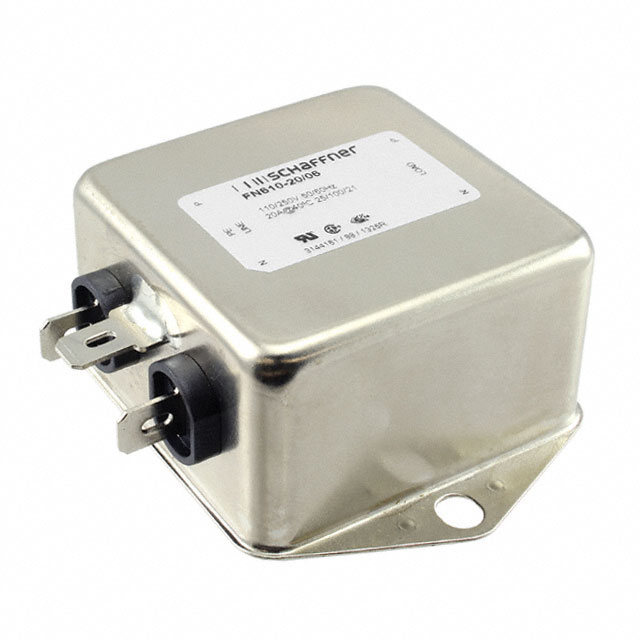

FN610-20-06

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN 610
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:9b79d8b1e0c6 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN 610
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：480µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN610-20-06

Overview

The Schaffner FN610-20-06 is a single-phase EMI power line filter designed for chassis mounting. It supports a maximum current of 20 A and operates at voltages up to 250 V AC/DC within a frequency range of 400 Hz. The unit utilizes fast-on terminals for connection and incorporates a single-stage filtering architecture. Key electrical parameters include a capacitance value of 100 nF and an inductance of 600 μH, with a leakage current of 0.74 mA. The component functions reliably across an operating temperature range from -25°C to 100°C.

Feature Summary

Single-stage EMC/RFI attenuation for noise suppression
Chassis mount design for secure installation
Fast-on terminal configuration for rapid wiring

Applications

Industrial control systems
Medical equipment power supplies
General purpose AC/DC applications

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner datasheets to confirm compatibility with your system requirements. Ensure that the voltage, current, and frequency ratings align with your operational environment. Cross-reference terminal types and mounting specifications before procurement to avoid integration issues.

Selection Notes

Select this model when a single-phase solution with 20 A capacity is required for chassis-mounted installations. Consider the 400 Hz frequency rating and fast-on termination style. Evaluate thermal management needs given the 100°C maximum operating temperature limit and ensure sufficient clearance for chassis mounting.

Part Context

This component belongs to the FN610 series of single-phase filters manufactured by Schaffner, now part of TE Connectivity. The series is engineered for general-purpose electromagnetic interference suppression in power lines. The FN610-20-06 variant specifically addresses higher current demands while maintaining compact dimensions suitable for standard industrial enclosures.
