FN610-3-06

Overview

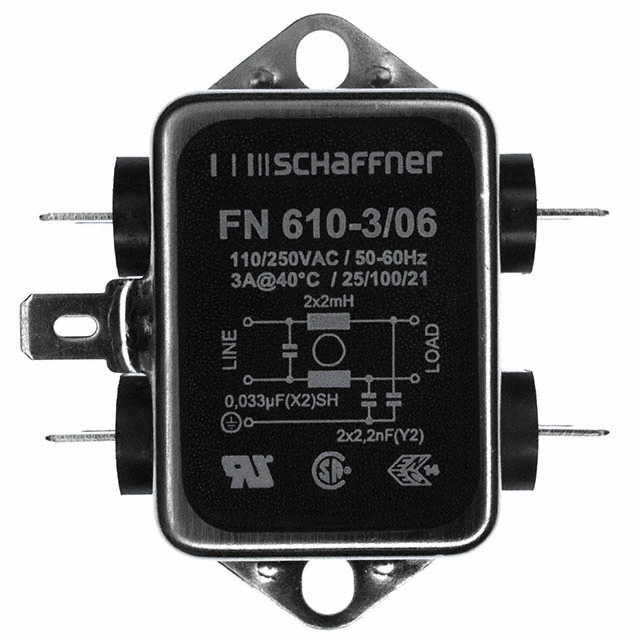

The FN610-3-06 is a single-phase EMC/EMI line filter module manufactured by TE Connectivity Schaffner. It is rated for 3 A current and operates within a voltage range of 250V DC to 400Hz. The component features a single-stage configuration with quick connect termination style. Designed for chassis mounting, it provides electromagnetic interference suppression for power lines in industrial and commercial applications.

Feature Summary

• Single-stage EMI filtering architecture
• Quick connect terminal interface
• Chassis mount installation type

Applications

• Power supply input filtering
• Industrial equipment noise suppression
• Commercial appliance EMI reduction

Procurement Notes

Verify the specific part number FN610-3-06 against official TE Connectivity Schaffner documentation to confirm ratings and physical dimensions. Ensure compatibility with system voltage and current requirements before integration. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when a single-stage filter solution is sufficient for the application's EMI requirements. Consider the 3 A current rating and 250V DC to 400Hz operating range. Evaluate the quick connect termination for ease of assembly and the chassis mount form factor for enclosure integration.

Part Context

This component belongs to the FN610 series of power line filter modules from TE Connectivity Schaffner. The series offers various current ratings and configurations for general-purpose EMI filtering. The FN610-3-06 specifically addresses needs for lower current applications requiring compact, single-stage filtration.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-reference electrical ratings and mechanical dimensions with potential substitute components to ensure functional equivalence.
