FN610-30-03

Overview

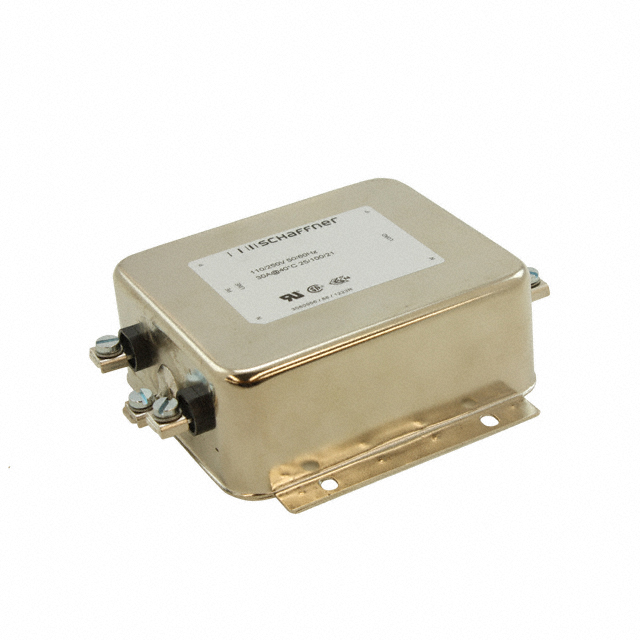

The Schaffner FN610-30-03 is a single-phase power line filter designed for chassis mounting. It supports a maximum current of 30A and operates at voltages up to 250V AC. The component utilizes terminal block connections for circuit integration. Its physical dimensions are approximately 113.5mm in length, 57.5mm in depth, and 45.4mm in height. The unit functions within an operating temperature range from -25°C to +100°C.

Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Designed for secure chassis mounting applications
• Utilizes terminal block interface for electrical connection

Applications

• Industrial machinery power conditioning
• Medical equipment noise reduction
• Information technology hardware protection

Procurement Notes

Verify the specific datasheet version before procurement, as manufacturers may update internal component layouts without changing the part number. Confirm that the terminal block configuration matches the intended wiring harness. Ensure the installation environment remains within the specified thermal limits to maintain performance integrity over the product lifecycle.

Selection Notes

Select this model when a single-phase solution with a 30A continuous current rating is required. The chassis mount style is suitable for integration into larger control panels or enclosures. Verify that the voltage rating aligns with the local mains supply specifications. Consider the physical footprint constraints of the target enclosure during the mechanical design phase.

Part Context

This component belongs to the FN610 series of power line filters manufactured by Schaffner EMC Inc. The series is engineered for general-purpose electromagnetic compatibility applications. The specific suffix indicates the current capacity and terminal type variations within the broader product family.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires consulting official manufacturer substitution guides to ensure equivalent electrical and mechanical specifications.
