FN610-6-06

Overview

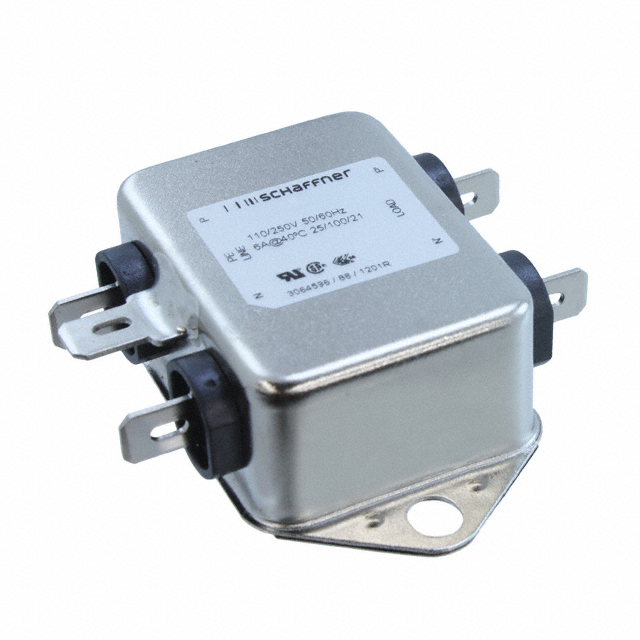

The Schaffner FN610-6-06 is a single-phase EMI/RFI line filter designed for chassis mounting. It operates within a frequency range of DC to 400Hz and supports rated AC voltages of 110VAC and 250VAC with a current capacity of 6A. The component features a two-stage configuration utilizing an inductance of 750µH and capacitance of 33nF. Termination is achieved via screw lug connections, and it functions reliably across a temperature range of -25°C to 85°C.

Feature Summary

• Provides dual-stage attenuation for effective electromagnetic interference suppression
• Supports universal input voltage ratings for global compatibility
• Features robust chassis mounting with screw lug terminations

Applications

• General purpose electronic equipment filtering
• Medical device power supplies
• Automation and process control systems

Procurement Notes

Verify the obsolete status of this specific part number before procurement planning. Confirm if replacement components from the FN2010 series or other compatible models are available. Ensure that any substitute maintains the required electrical specifications and physical dimensions for your existing chassis design.

Selection Notes

Select this component only if legacy compatibility is required. For new designs, consider active alternatives such as the FN2010 series which offer similar performance characteristics. Verify that the 6A rating and 750µH inductance meet the specific noise reduction requirements of the target application circuit.

Part Context

This component belongs to the Schaffner FN610 series of AC/DC chassis filters. These filters are engineered for general-purpose applications requiring reliable EMI suppression. The series typically includes various current ratings and voltage configurations to suit different industrial and commercial power supply needs.

Replacement Considerations

The FN2010-6-06 is listed as a similar alternative. Verify pinout compatibility and mounting hole patterns before substitution.
