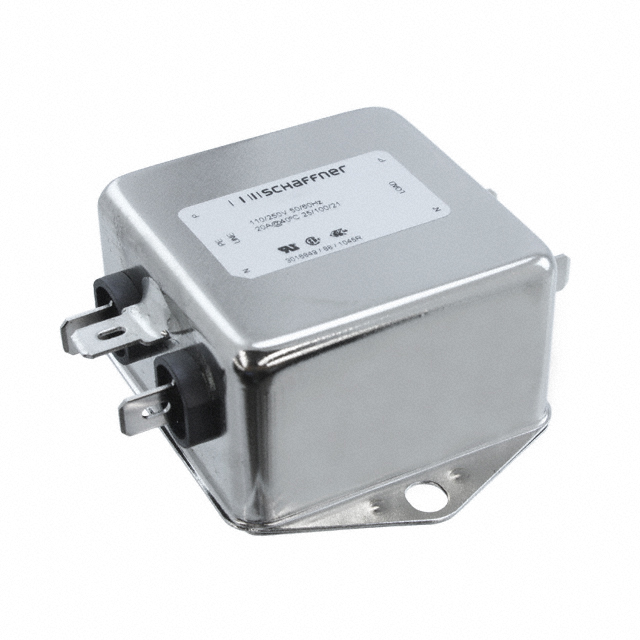

FN610B-20-06

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN 610
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:ad6335947d49 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN 610
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：480µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN610B-20-06

Overview

The Schaffner FN610B-20-06 is a single-phase EMI line filter rated for 20 A and 250 V AC/DC up to 400 Hz. It utilizes a quick connect terminal interface and chassis mounting configuration. The component features a two-stage filtering architecture designed for general electromagnetic compatibility applications.

Feature Summary

Two-stage filtering architecture
Quick connect terminal interface
Chassis mounting configuration

Applications

General electromagnetic compatibility filtering
Single-phase power line noise suppression

Procurement Notes

Verify current manufacturing status as the product may be obsolete. Confirm exact replacement part numbers with the manufacturer before procurement. Ensure technical specifications match system requirements due to potential discontinuation.

Selection Notes

Select this component for single-phase applications requiring 20 A capacity at 250 V AC/DC. Verify that the quick connect terminals are compatible with existing wiring harnesses. Confirm chassis mounting dimensions fit the enclosure design.

Part Context

This component belongs to the FN610B series of single-phase EMI filters from Schaffner EMC Inc. The series typically offers robust noise attenuation for industrial and commercial power lines using standardized mounting and connection methods.
