FN610B-3-06

Overview

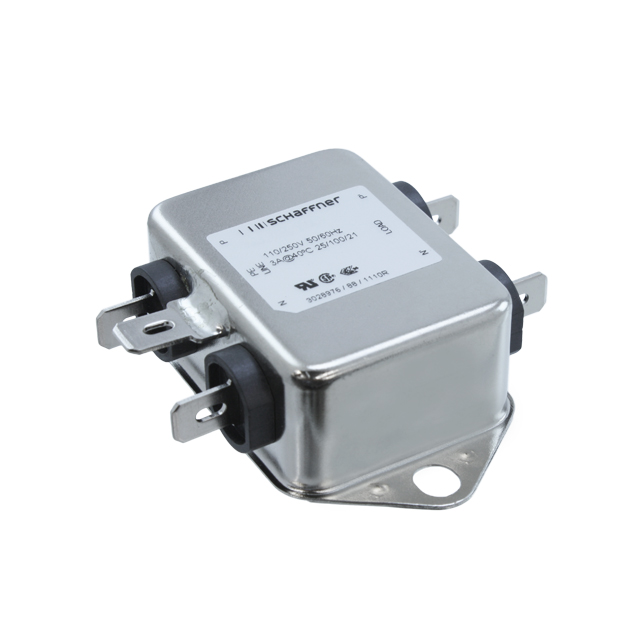

The Schaffner FN610B-3-06 is a single-phase EMI line filter designed for chassis mounting. It supports a rated current of 3 A and operates at voltages up to 250 V AC/DC with a frequency range extending to 400 Hz. The component utilizes quick-connect terminals for circuit integration. Key electrical parameters include an inductance of 2.5 mH, capacitance of 100 nF, and leakage current of 2 μA. It functions within a temperature range of -25°C to 100°C.

Feature Summary

• Provides electromagnetic interference suppression for power lines
• Designed for secure chassis mounting installation
• Utilizes quick-connect terminal style for circuit integration

Applications

• Power supply input filtering
• Electronic equipment noise reduction
• Industrial control systems

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with system voltage and current requirements. Confirm that the quick-connect terminal type matches existing wiring harnesses. Check for updated certification status and environmental compliance declarations prior to procurement.

Selection Notes

Select this component based on its 3 A current rating and 250 V AC/DC capability. Ensure the chassis mounting form factor fits the enclosure design. Verify that the quick-connect termination style aligns with the available connection points in the target application circuit.

Part Context

This component belongs to the FN610 series of single-phase EMI filters manufactured by Schaffner EMC Inc. The series is engineered for general-purpose power line filtering applications requiring compact chassis-mounted solutions with standardized termination styles.

Replacement Considerations

Consult official substitution guides for verified equivalents. Cross-reference technical specifications such as current rating, voltage, and inductance before considering alternative part numbers.
