FN610B-6-06

Overview

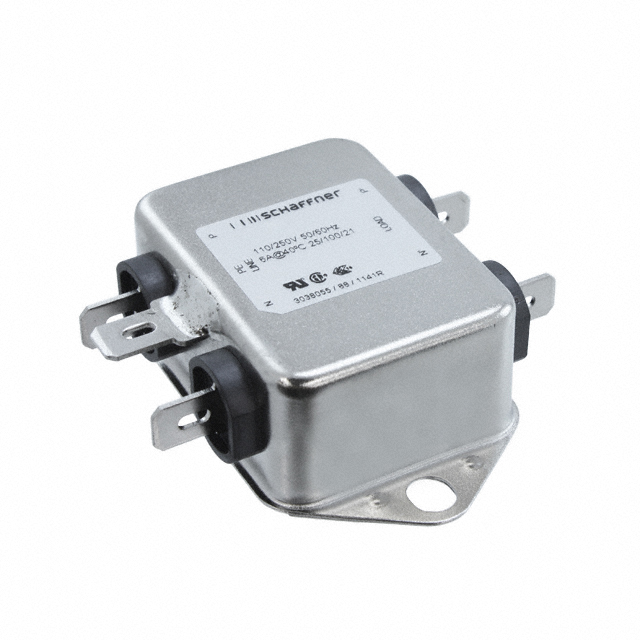

The Schaffner EMC Inc. FN610B-6-06 is a single-phase EMI/EMC line filter designed for chassis mounting. It supports an AC voltage rating of 250V and a continuous current of 6A, operating within a frequency range of DC to 400Hz. The unit features a two-stage configuration with quick-connect terminals and provides an inductance of 7.8mH. Certified by CSA, ENEC, and UR, it functions reliably between -25°C and 100°C.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with quick-connect termination style
• Certified for international safety standards including CSA, ENEC, and UR

Applications

• Industrial equipment power supply input stages
• Medical device power filtering
• General purpose electronic systems requiring EMI reduction

Procurement Notes

Verify the specific suffix code against official datasheets to confirm terminal type and lead configuration. Ensure the application environment remains within the specified temperature range of -25°C to 100°C. Confirm that the 6A current rating and 250VAC voltage limits align with system requirements before integration.

Selection Notes

Select this component when a single-phase, chassis-mount solution is required for 6A circuits. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify compatibility with quick-connect terminals during PCB or panel layout planning to ensure proper electrical connection.

Part Context

This model belongs to the FN610 series of single-phase AC/DC chassis filters manufactured by Schaffner. These components are engineered for general-purpose applications where compact size and high performance are necessary. The series typically includes variants with different current ratings and terminal configurations.

Replacement Considerations

Public confirmed substitute part numbers: 5500.2612.04 (SCHURTER Inc.), AMI-27B-6-1 (Altran Magnetics, LLC).
