FN612-1-06

Overview

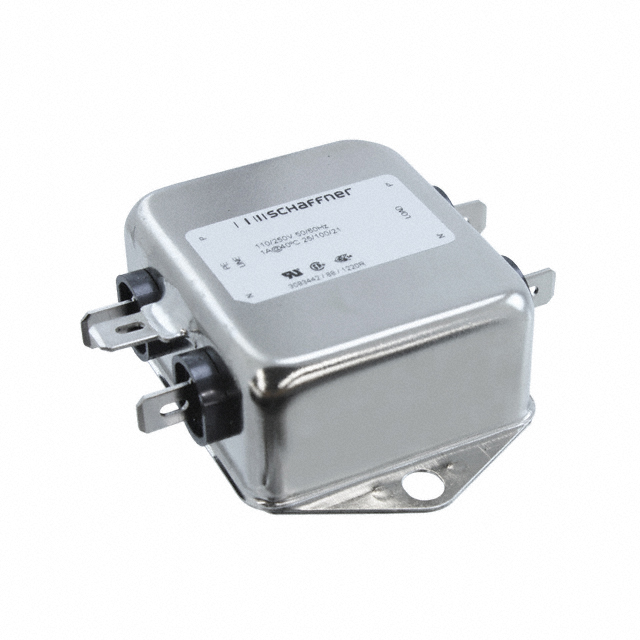

The Schaffner FN612-1-06 is a single-phase power line filter designed for chassis mounting. It features fast-on terminal connections and operates at a rated voltage of 250 VAC with a current rating of 1 A. The component belongs to the FN 612 series, which is engineered for general-purpose electromagnetic compatibility (EMC) applications in power supply lines.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power circuits
• Utilizes fast-on terminals for rapid and secure circuit board or busbar integration
• Engineered for chassis mounting to ensure stable mechanical installation

Applications

• Single-phase power supply input stages
• General-purpose EMC filtering for low-current electronic equipment
• Industrial control systems requiring single-phase noise reduction

Procurement Notes

Verify the exact part number against official manufacturer documentation to confirm specifications. Check for end-of-life status or alternative recommendations from TE Connectivity / Schaffner. Ensure the selected variant matches the required terminal type and mounting style for your specific design implementation.

Selection Notes

Select this component for single-phase applications requiring 1 A current handling and 250 VAC operation. Confirm that the fast-on terminal style aligns with the available connector options in the target assembly. Verify chassis mounting requirements and space constraints before finalizing the design choice.

Part Context

This component is part of the FN 612 series by Schaffner, a manufacturer now operating under TE Connectivity. The series focuses on providing reliable EMC solutions for various industrial and commercial power applications, ensuring compliance with relevant electromagnetic compatibility standards.
