FN612-20-06

Overview

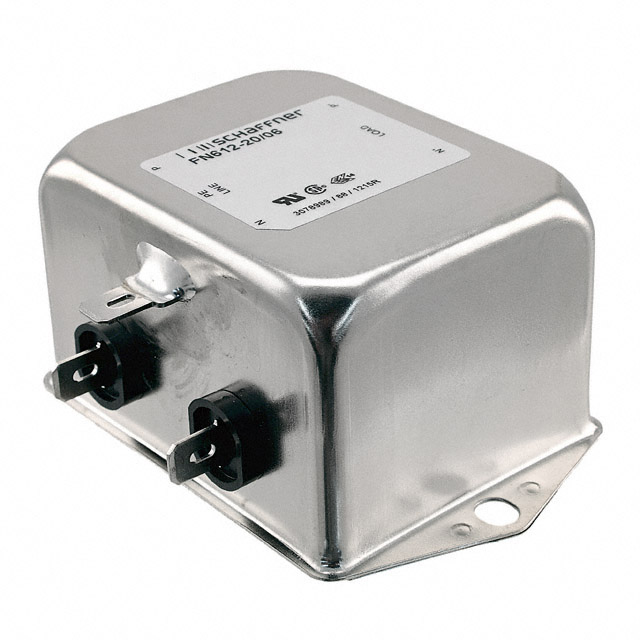

The FN612-20-06 is a single-phase power line filter from the Schaffner FN 612 series, designed for chassis mounting. It features a rated voltage of 250 VAC and a continuous current rating of 20 A. The unit utilizes faston terminals for electrical connection and operates within a frequency range of 0 Hz to 400 Hz. Key electrical specifications include an inductance of 0.61 mH and a maximum leakage current of 190 uA. The component weighs approximately 630 g and holds UL, CSA, and ENEC-14 certifications.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Engineered for secure chassis mounting applications
• Utilizes faston terminal connections for straightforward integration

Applications

• Industrial machinery power conditioning
• Medical equipment EMC filtering
• General purpose electronic systems requiring noise reduction

Procurement Notes

Verify component authenticity through authorized TE Connectivity or Schaffner distributors. Confirm that the specific part number matches project requirements regarding current ratings and terminal types. Ensure compliance with local safety standards such as UL and CSA before implementation. Check for end-of-life status or alternative sourcing options if availability is constrained.

Selection Notes

Select this model when a robust, high-current single-phase filter is required for chassis installation. The 20 A rating suits heavy-duty industrial loads. Verify that the faston terminal style aligns with existing wiring harnesses. Consider the physical dimensions and weight constraints during mechanical design integration.

Part Context

This component belongs to the FN 612 series of power line filters manufactured by Schaffner, now part of TE Connectivity. The series is recognized for providing reliable EMI/RFI attenuation in demanding environments. The FN612-20-06 specifically addresses applications needing substantial current handling capabilities with standardized mounting configurations.

Replacement Considerations

Consult official manufacturer documentation for direct cross-references. Verify compatibility of pinouts and mounting holes when substituting. Ensure replacement units meet identical voltage and current ratings.
