FN612-3-06

Overview

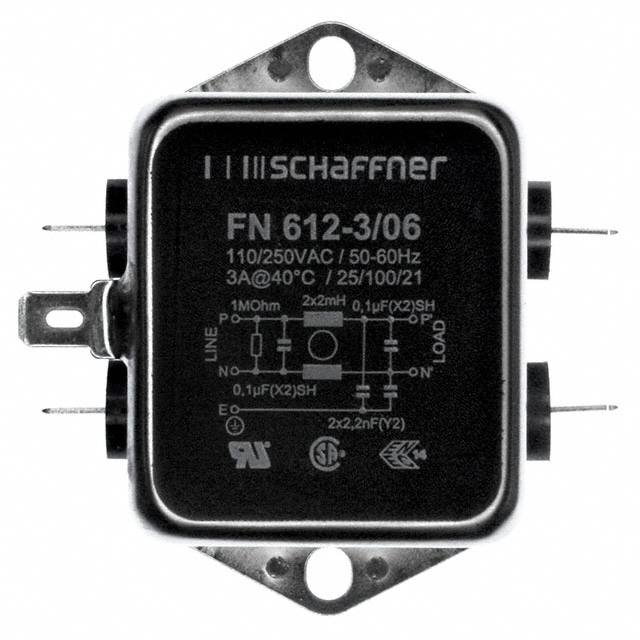

The FN612-3-06 is a single-phase power line filter from the FN 612 series manufactured by TE Connectivity / Schaffner. It features a rated voltage of 250 VAC and a current rating of 3 A. The unit utilizes chassis mount installation with Faston termination style. Its operational frequency range spans from 0 Hz to 400 Hz. The component has an approximate weight of 630 g.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Designed for secure chassis mounting applications
• Utilizes faston terminal connections for circuit integration

Applications

• Industrial equipment power conditioning
• Medical device power supply filtering
• General purpose AC power line protection

Procurement Notes

This component is officially listed as End of Life (EOL) by the manufacturer. Availability is restricted, and distributors may not stock this item in your region. Verify current lifecycle status and sourcing options through authorized channels before design finalization.

Selection Notes

Select this model for low-current single-phase applications requiring 3 A capacity at 250 VAC. Ensure the system operates within the 0 Hz to 400 Hz frequency range. Confirm that chassis mounting and Faston terminations align with the mechanical and electrical interface requirements of the target enclosure.

Part Context

The FN612-3-06 belongs to the FN 612 series of power line filters. This series is characterized by single-phase configurations designed for chassis mounting. The product falls under the Power Condition subcategory and is classified as a Power Line Filter module within the TE Connectivity / Schaffner portfolio.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the End of Life status, alternative components must be identified through independent cross-reference tools or direct manufacturer consultation.
