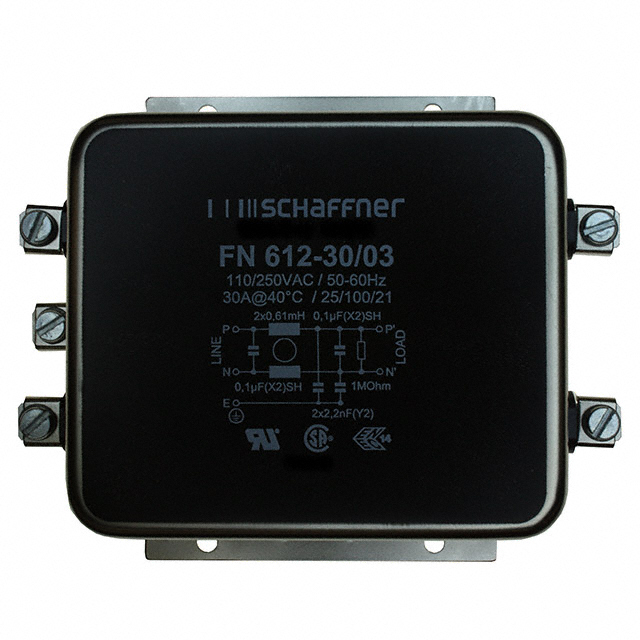

FN612-30-03

Description：LINE FILTER 250VAC 30A CHASS MNT
Series：FN 612
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:3c8dbaabf049 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 30A CHASS MNT
Series：FN 612
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：30 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：610µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN612-30-03

Overview

The FN612-30-03 is a three-phase power line filter from the Schaffner FN 612 series, designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 30 A. The unit incorporates an inductance of 0.61 mH and operates within a frequency range of 0 Hz to 400 Hz. Electrical specifications include a leakage current of 190 uA. The component utilizes Faston terminals for connection and carries UL, CSA, and ENEC-14 compliance certifications.

Feature Summary

Provides electromagnetic interference suppression for three-phase power systems
Engineered for direct chassis mounting applications
Utilizes Faston terminal connections for circuit integration

Applications

Industrial machinery power conditioning
Three-phase equipment EMC filtering
Power supply input protection

Procurement Notes

Verify component status as the FN612-30-03 is officially listed as End of Life (EOL). Confirm availability through authorized distributors or secondary markets. Ensure replacement strategies account for discontinued status. Validate technical compatibility with existing designs before procurement. Check specific manufacturing lot dates if required for legacy system maintenance.

Selection Notes

Select this model for three-phase applications requiring 30 A capacity at 250 VAC. The 0.61 mH inductance suits frequencies up to 400 Hz. Faston termination dictates board or wire interface requirements. Chassis mount style defines enclosure integration needs. Verify leakage current limits against safety standards for sensitive loads.

Part Context

This component belongs to the Schaffner FN 612 series of power line filters. The series focuses on three-phase noise reduction for industrial environments. TE Connectivity / Schaffner manufactures these units. The part serves as a passive filtering element for power integrity.
