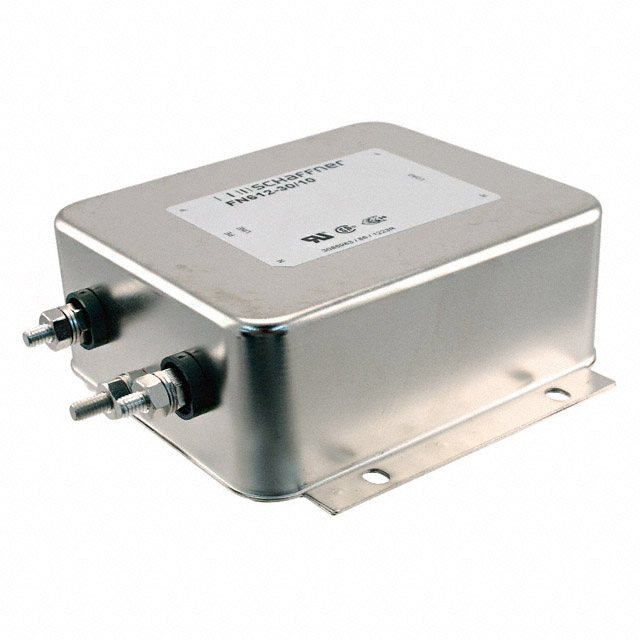

FN612-30-10

Description：LINE FILTER 250VAC 30A CHASS MNT
Series：FN 612
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:e79caea50717 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 30A CHASS MNT
Series：FN 612
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：30 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (8-32)
Inductance：610µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN612-30-10

Overview

The FN612-30-10 is a single-phase EMC/EMI power line filter module manufactured by Schaffner EMC Inc. It features a rated current of 30 A and operates within a voltage range of 250 VAC to 400 Hz. The unit utilizes a threaded post (8-32) connection interface for secure mounting. Designed as a single-stage filter, it provides electromagnetic interference suppression for power lines in industrial applications.

Feature Summary

Single-phase EMI/EMC filtering capability
Threaded post terminal connections
Chassis mount design

Applications

Industrial power conditioning systems
Electromagnetic compatibility testing equipment
Power supply input stages

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement. Confirm that the 8-32 threaded post terminals match your assembly hardware requirements. Check for any End-of-Life notifications or alternative part recommendations from the manufacturer due to potential supply chain changes.

Selection Notes

Select this component when a single-phase filter with a 30 A rating is required. Ensure the application environment supports chassis mounting and that the 8-32 threaded post interface is compatible with the available mounting hardware. Verify that the operating frequency aligns with the 400 Hz specification.

Part Context

This component belongs to the FN612 series of power line filter modules from Schaffner EMC Inc. The series includes various current ratings and terminal configurations, such as the FN612-30-03 and FN612-100-24, offering scalable solutions for different power line filtering needs across industrial and commercial sectors.
