Product Detailed Parameters
- Description：LINE FILTER 250VAC 80A CHASS MNT
- Series：FN 612
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：80 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：200µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

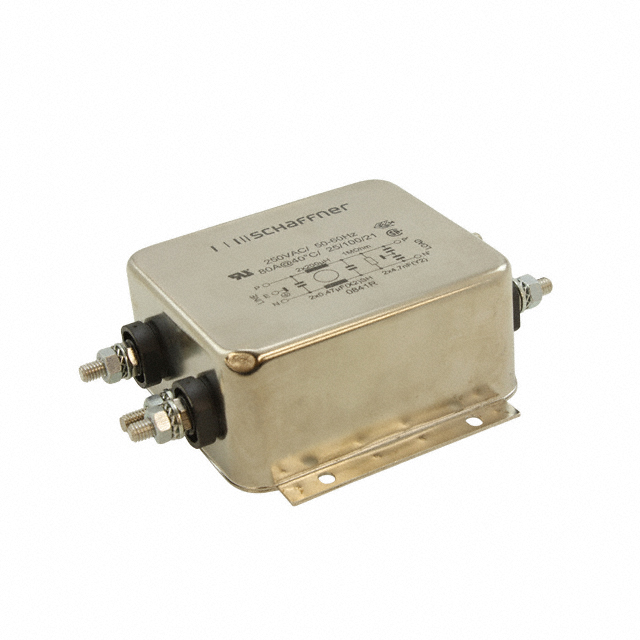

The FN612-80-24 is a single-phase power line filter manufactured by Schaffner EMC Inc. It features a rated current of 80 A and a voltage rating of 250 VAC. The unit utilizes chassis mount installation with faston termination style. Designed for operation at frequencies up to 400 Hz, the filter exhibits a leakage current of 450 uA. The component belongs to the FN 612 series and weighs approximately 1.1 kg.
Feature Summary
- Provides electromagnetic interference suppression for single-phase AC power lines
- Engineered for high-current applications up to 80 Amperes
- Supports operation in aviation frequency environments up to 400 Hz
Applications
- Avionic ground support equipment power conditioning
- Industrial machinery requiring single-phase EMI filtering
- Chassis-mounted power distribution units
Procurement Notes
Verify availability status as this component may be subject to end-of-life notifications or restricted supply conditions. Confirm that the faston termination style matches the mating connector requirements of the target system. Ensure the chassis mounting dimensions align with the enclosure design specifications prior to procurement.
Selection Notes
Select this model when a single-phase filter capable of handling 80 A continuous current is required. The 250 VAC rating suits standard low-voltage AC systems. Consider the 400 Hz operational capability if the application involves aircraft or specialized industrial power sources rather than standard 50/60 Hz mains.
Part Context
This component is part of the FN 612 series from Schaffner EMC Inc., designed for robust power line filtering. The series typically offers chassis-mount solutions for industrial and aerospace applications. The specific model provides high-current capacity suitable for demanding power distribution scenarios requiring effective noise attenuation.
Replacement Considerations
Consult official manufacturer documentation for confirmed substitute part numbers. Verify that any replacement maintains identical current ratings, voltage specifications, and termination styles to ensure compatibility.
