FN660-1-06

Overview

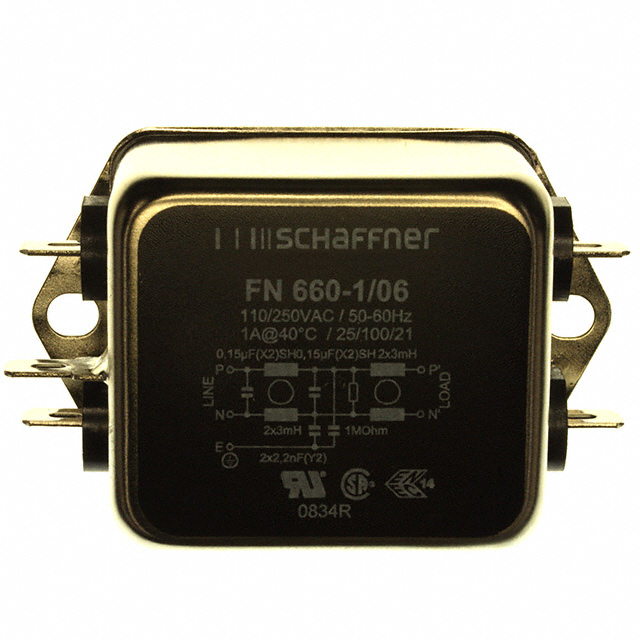

The Schaffner FN660-1-06 is a single-phase, two-stage power line filter designed for chassis mounting. It features screw terminals and operates at a rated voltage of 250 VAC with a current rating of 1 A. The component has a leakage current of 190 uA and functions at a frequency of 60 Hz. Manufactured by TE Connectivity / Schaffner, it weighs 170 g and carries the alias part number 800038-SF.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure installation
• Screw terminal connections for reliable electrical contact

Applications

• Industrial equipment EMC compliance
• Power supply input filtering
• Electronic device noise reduction

Procurement Notes

Verify availability status as the component may be discontinued or have limited stock. Confirm technical specifications against official datasheets before integration. Check for end-of-life notifications from the manufacturer to ensure long-term supply chain stability.

Selection Notes

Select this model for applications requiring single-phase filtering with a 1 A current capacity. Ensure chassis mounting space is available. Verify that the 250 VAC rating and 190 uA leakage current meet system safety requirements.

Part Context

Part of the FN660 series, which includes variants like FN660-3-06 and FN660-20-06. These filters share similar two-stage designs but differ in current ratings and physical dimensions. The series targets general industrial EMI/EMC applications.

Replacement Considerations

Check for direct substitutes within the FN660 series based on current rating needs. Verify compatibility with existing mounting hardware and terminal configurations when considering alternative models.
