FN660-10-06

Overview

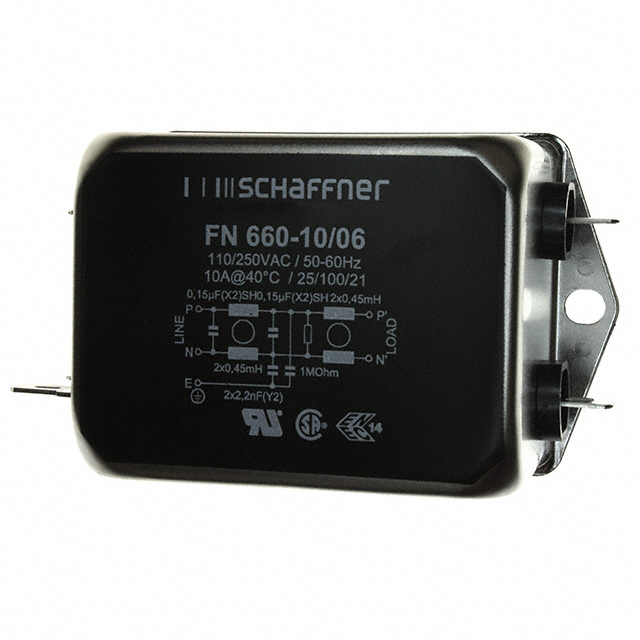

The Schaffner FN660-10-06 is a single-phase, two-stage power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 10 A at a working frequency of 60 Hz. The unit utilizes quick connect terminals for electrical termination and exhibits a leakage current of 190 uA. This component belongs to the FN660 series, which provides EMI suppression for office equipment and industrial applications.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design for secure installation in equipment enclosures
• Quick connect terminal interface for simplified wiring integration

Applications

• Higher power office equipment EMC compliance
• Low to medium power industrial applications
• Single-phase power line noise reduction

Procurement Notes

Verify end-of-life status before procurement as this specific part number may be discontinued. Confirm RoHS compliance details through official documentation. Ensure replacement components match the 10 A current rating and 250 VAC voltage specifications. Validate that the quick connect terminal type aligns with existing harness requirements. Check for available alternative models within the FN660 series if direct substitution is unavailable.

Selection Notes

Select this filter for single-phase systems requiring 10 A capacity and chassis mounting. Ensure the application environment supports the specified 60 Hz operating frequency. Verify that the 190 uA leakage current meets safety standards for the intended equipment. Confirm that quick connect terminals are compatible with the system's wiring infrastructure. Consider thermal management capabilities within the enclosure design.

Part Context

This component is part of the Schaffner FN660 series, which specializes in single-phase filters for chassis mounting. The series targets EMC compliance for office equipment and industrial machinery. TE Connectivity acquired Schaffner, integrating these products into their broader electromagnetic compatibility portfolio. The FN660 series emphasizes robust performance in low to medium power scenarios.

Replacement Considerations

Check for FN660-10-03 or FN660-10-07 variants if different terminal styles are required. Verify availability of FN660-16-06 for higher current needs. Consult official datasheets for pinout and dimensional compatibility before substituting.
