FN660-16-03

Overview

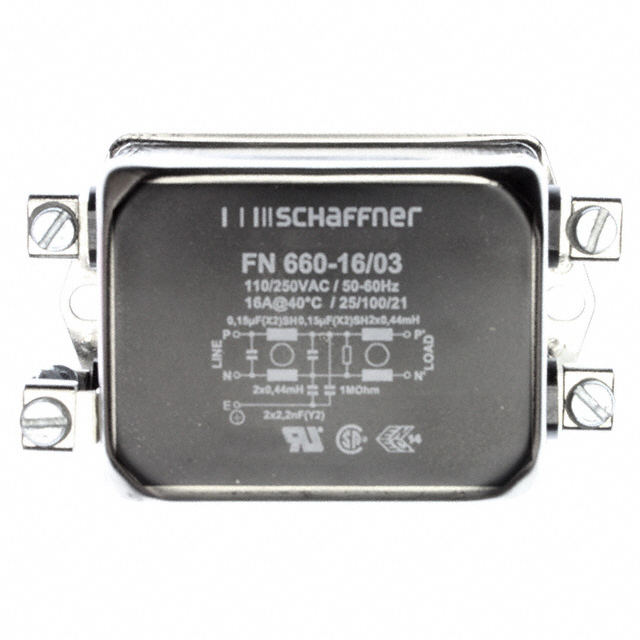

The Schaffner FN660-16-03 is a single-phase, two-stage power line filter designed for chassis mounting. It features screw termination and supports a voltage rating of 250 VAC with a current capacity of 16 A. The unit operates at a frequency of 60 Hz and exhibits a leakage current of 190 uA. Weighing 170 g, this component belongs to the FN660 series and serves as an EMI suppression solution for AC power lines.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design for secure mechanical installation
• Screw terminal connections for reliable electrical contact

Applications

• Industrial machinery power supply conditioning
• Medical equipment electromagnetic interference suppression
• Information technology hardware power line protection

Procurement Notes

Verify end-of-life status and availability through authorized distributors. Confirm that the specific ordering suffix matches the required termination style and mounting configuration. Ensure compliance with relevant safety standards before integration into final products.

Selection Notes

Select this model when high current handling up to 16 A is required in a compact form factor. Consider the two-stage topology for applications demanding superior common-mode noise rejection compared to single-stage alternatives.

Part Context

This component is part of the Schaffner FN660 series, which provides general-purpose line filters. The series offers various current ratings and termination options to accommodate diverse industrial and commercial power filtering requirements.

Replacement Considerations

Consult official documentation for direct substitutes. Verify compatibility regarding current ratings, voltage limits, and physical dimensions before replacing the existing component.
