Product Detailed Parameters
- Description：LINE FILTER 250VAC 16A CHASS MNT
- Series：FN 660
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：16 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：440µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

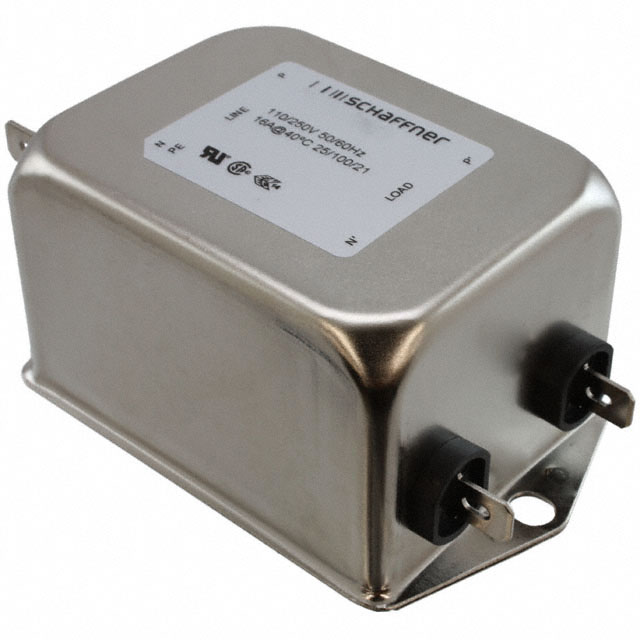

The Schaffner FN660-16-06 is a single-phase EMI power line filter designed for chassis or panel mounting. It features a rated current of 16 A and a voltage rating of 250 VAC, operating within a frequency range of DC to 400 Hz. The unit utilizes faston terminal connections for circuit integration. Certified by UL, CSA, and ENEC, it ensures compliance with international safety standards for electromagnetic compatibility in electrical equipment.
Feature Summary
- Provides effective attenuation of electromagnetic interference on AC power lines
- Constructed for robust chassis or panel installation environments
- Includes integrated safety certifications for global regulatory compliance
Applications
- Industrial machinery power input stages
- Medical equipment supply circuits
- Renewable energy inverter systems
Procurement Notes
Verify the specific datasheet version against the manufacturer's official documentation before procurement. Confirm that the faston terminal dimensions match the mating connector specifications in the target design. Ensure the chassis mounting hole pattern aligns with the mechanical drawing provided in the official product specification sheet.
Selection Notes
Select this component when a single-phase solution is required for 16 A applications at 250 VAC. Consider the physical dimensions and faston termination style during layout planning. Evaluate the need for certified safety approvals if the end product targets regulated markets requiring UL, CSA, or ENEC recognition.
Part Context
This model belongs to the FN660 series of single-phase EMC filters manufactured by Schaffner. The series is engineered for general-purpose noise suppression in AC power lines. It serves as a standard component for mitigating conducted emissions in electronic devices requiring reliable power line filtering.
Replacement Considerations
Cross-reference part numbers such as FN660-16-06 from other distributors to ensure identical specifications. Verify mechanical fit and terminal type compatibility before substituting.
