FN660-16-10

Overview

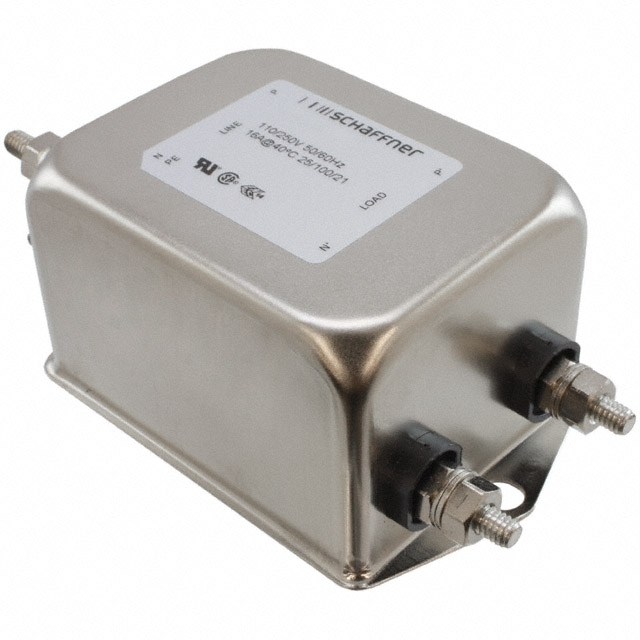

The Schaffner FN660-16-10 is a two-phase RFI power line filter designed for chassis mounting. It supports a rated current of 16 A and operates at 250 VAC. The unit provides electromagnetic interference suppression for sensitive electronic equipment connected to AC power lines.

Feature Summary

• Two-phase configuration for balanced noise attenuation
• Chassis mount design for secure panel integration
• RFI filtering capability for power line applications

Applications

• Industrial machinery power input protection
• Medical equipment EMI suppression
• Test and measurement device power conditioning

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before ordering. Confirm that the chassis mounting style matches your enclosure design. Ensure compatibility with local safety standards and regulatory certifications required for your final product assembly.

Selection Notes

Select this model when a two-phase solution is required for 16 A circuits. Consider the physical dimensions for chassis cutouts. Evaluate leakage current specifications if human contact is possible. Compare insertion loss characteristics against your specific noise spectrum needs.

Part Context

This component belongs to the FN660 series of general-purpose power line filters from Schaffner. These units are engineered for robust performance in industrial environments. The series offers various current ratings and phase configurations to suit different power distribution architectures.

Replacement Considerations

Check pinout and mounting hole patterns for direct substitution. Verify that replacement units meet identical safety agency approvals. Ensure thermal dissipation capabilities remain consistent with the original design parameters.
