FN660-6-06

Overview

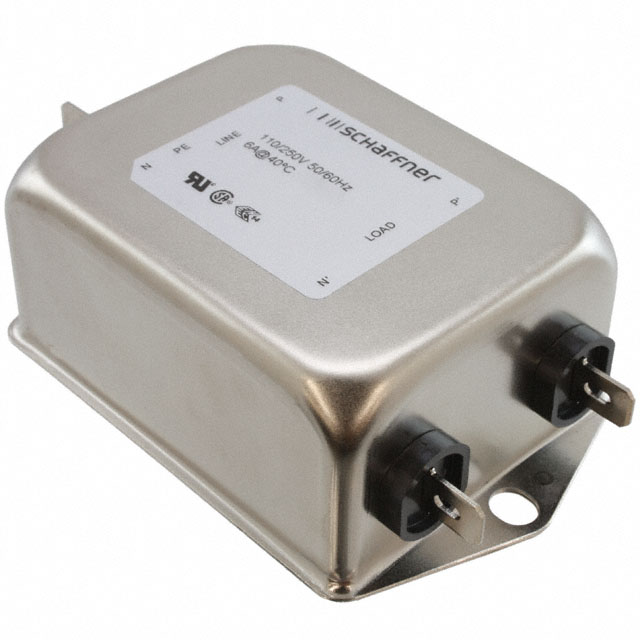

The Schaffner FN660-6-06 is a single-phase EMI power line filter designed for chassis mounting. It supports a rated current of 6 A and operates at voltages up to 250 VAC. The component features faston terminals for connection and is certified under UL standards, ensuring compliance with safety regulations for office equipment and industrial applications.

Feature Summary

• Single-phase configuration optimized for chassis mounting
• Faston terminal style for secure electrical connections
• UL certification for safety compliance in regulated environments

Applications

• Higher power office equipment EMC compliance
• Low to medium power industrial applications

Procurement Notes

Verify the specific manufacturer designation, as TE Connectivity and Schaffner are associated with this part number. Confirm that the faston terminal pitch matches your PCB or wire harness requirements. Ensure the chassis mounting hole pattern aligns with your enclosure design before finalizing procurement.

Selection Notes

Select this model when a single-phase solution is required for chassis-mounted installations. It is suitable for applications needing 6 A capacity with faston termination. Consider the physical dimensions and mounting constraints of the chassis to ensure proper fit and thermal management during operation.

Part Context

This component belongs to the FN660 series of single-phase EMI filters. These filters are engineered to provide effective noise suppression in AC power lines. The series is widely used in scenarios where compact, reliable filtering is necessary for maintaining signal integrity and regulatory compliance.

Replacement Considerations

FN660-10-06 offers a higher current rating of 10 A with similar form factors. Verify if the increased capacity meets your system requirements without compromising space constraints.
