FN660B-10-06

Overview

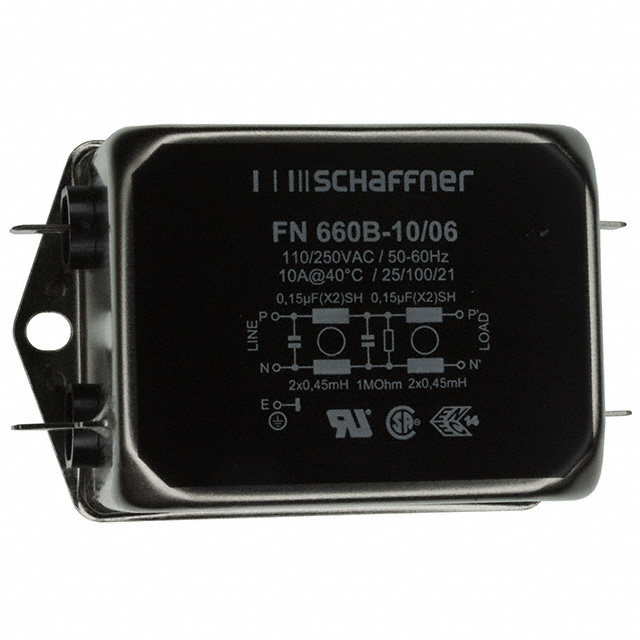

The Schaffner FN660B-10-06 is a single-phase power line filter designed for medical applications. It features a chassis mount configuration with a two-stage filtering architecture to ensure effective electromagnetic interference suppression. The unit is rated for a continuous current of 10 A and operates at voltages up to 250 VAC. This component integrates an IEC C14 inlet connector, providing a standardized interface for AC power input in regulated environments requiring high reliability and safety compliance.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Designed specifically for medical equipment applications
• Chassis mount construction for secure installation

Applications

• Medical diagnostic imaging systems
• Patient monitoring equipment
• Clinical laboratory analyzers

Procurement Notes

Verify the specific datasheet version for the FN660B-10-06 to confirm current regulatory certifications and mechanical dimensions. Ensure that the procurement channel provides authentic components from Schaffner EMC Inc. or authorized distributors to guarantee performance integrity and compliance with medical safety standards.

Selection Notes

Select this model when a compact, two-stage EMI filter is required for medical devices operating on single-phase AC power. The 10 A rating suits moderate-power clinical instruments. Verify that the chassis mounting style aligns with the system enclosure design and that the IEC C14 inlet meets the facility's power cord requirements.

Part Context

This component belongs to the Schaffner FN660B series, which specializes in filtered power entry modules for the medical industry. The series emphasizes compact form factors and robust electromagnetic compatibility to meet stringent international safety regulations for healthcare electronics.

Replacement Considerations

Cross-reference with FN660B-20-06 for higher current capacity or FN9222B-10-06 for alternative mounting styles. Confirm that substitute models maintain the same two-stage filtering topology and medical certification status.
