FN660B-16-06

Overview

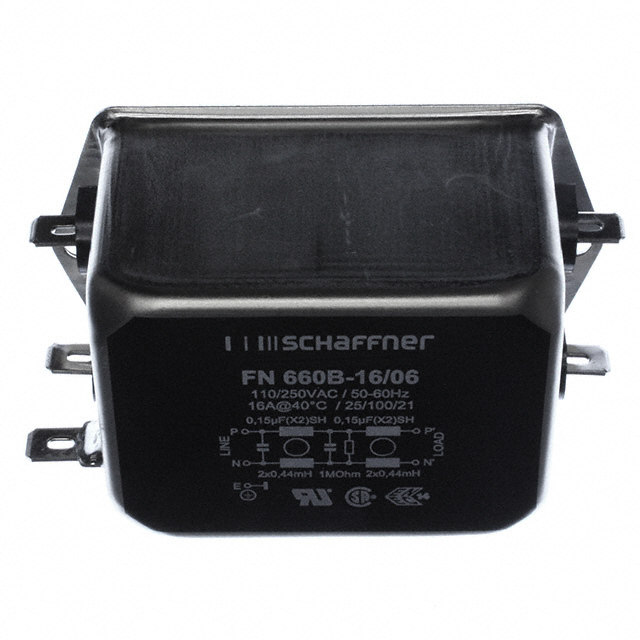

The FN660B-16-06 is a single-phase EMC/EMI line filter manufactured by Schaffner EMC Inc. It features a chassis mount configuration with quick-connect terminals for secure installation. The component is rated for an AC voltage of 250V and a continuous current of 16A. It operates within a frequency range of DC to 400Hz and utilizes a two-stage filtering configuration. The unit includes an inductance of 970µH and complies with RoHS3 standards.

Feature Summary

• Provides effective electromagnetic interference suppression through a two-stage filtering architecture designed for single-phase power lines.
• Engineered for robust chassis mounting, ensuring stable physical integration into industrial equipment enclosures.
• Utilizes quick-connect terminal styles to facilitate efficient wiring and maintenance procedures.

Applications

• Industrial machinery requiring EMI suppression
• Power supply units needing noise reduction
• Electronic equipment compliant with safety certifications

Procurement Notes

Verify the specific part number FN660B-16-06 against official Schaffner documentation to confirm technical specifications. Ensure compatibility with system voltage and current requirements before procurement. Check for updated certification statuses such as CE, CSA, or UR. Confirm terminal type and mounting dimensions match design constraints. Validate RoHS3 compliance if required by project regulations.

Selection Notes

Select this filter based on its 16A current rating and 250VAC voltage capability. Consider the two-stage design for enhanced attenuation performance. Verify that the chassis mount style fits the available enclosure space. Ensure the quick-connect terminals align with existing wiring harnesses. Confirm operational temperature ranges meet environmental conditions.

Part Context

This component belongs to the FN660 series of single-phase AC/DC chassis filters produced by Schaffner EMC Inc. The series is designed for general-purpose electromagnetic compatibility applications. These filters are commonly used in industrial and commercial settings to mitigate conducted emissions. The product line emphasizes reliability and compliance with international safety standards.

Replacement Considerations

Publicly confirmed substitute part numbers for FN660B-16-06 were not identified in the provided source material. Consult official Schaffner documentation or authorized distributors for verified cross-reference data before considering alternative components.
