Product Detailed Parameters
- Description：LINE FLTR 250VAC 1.8A CHASS MNT
- Series：FN 670
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：1.8 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：7.2mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

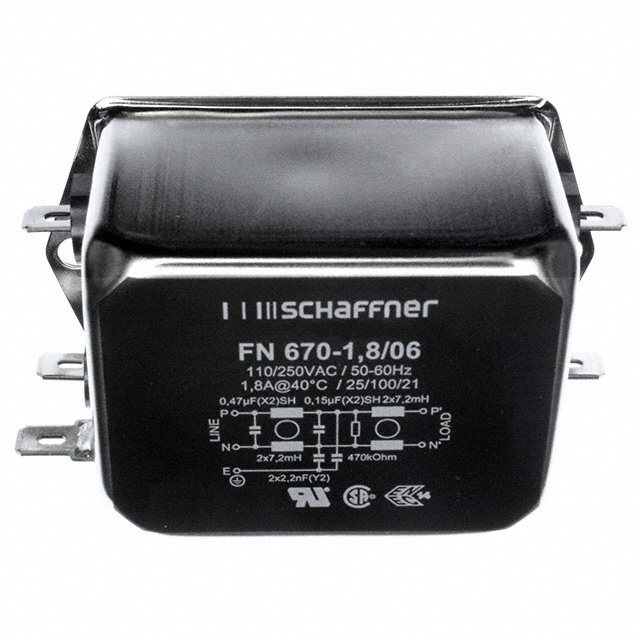

The Schaffner FN670-1.8-06 is a single-phase, two-stage power line filter designed for chassis mounting. It features quick connect terminals and operates at a rated voltage of 250 VAC with a current rating of 1.8 A. The component functions at a working frequency of 60 Hz and exhibits a leakage current of 190 uA. This EMI filter belongs to the FN670 series, providing electromagnetic interference suppression for AC power lines.
Feature Summary
- Two-stage filtering architecture for enhanced noise attenuation
- Chassis mount configuration for secure installation
- Quick connect terminal style for simplified wiring
Applications
- Single-phase AC power line filtering
- Electromagnetic interference suppression in electronic equipment
- Power supply input stages
Procurement Notes
Verify the exact part number suffix against official documentation, as variations such as /06 or /07 may exist. Confirm RoHS compliance status through the manufacturer's declaration. Check for End-of-Life notifications or obsolescence warnings before procurement planning. Ensure the specific terminal type matches the system requirements.
Selection Notes
Select this component for applications requiring single-phase EMI filtration with a 1.8 A current capacity. Verify that the chassis mounting style and quick connect terminals are compatible with the enclosure design. Ensure the 250 VAC rating meets the system's electrical specifications. Consider the physical dimensions and weight constraints during integration.
Part Context
This component is part of the Schaffner FN670 series of power line filters. The series offers various current ratings and terminal configurations for different power line filtering needs. These filters are engineered for industrial and commercial electronic applications requiring reliable EMI performance.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer for direct replacements or cross-reference similar models within the FN670 series based on current and voltage ratings.
