Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：FN 670
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：10.4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

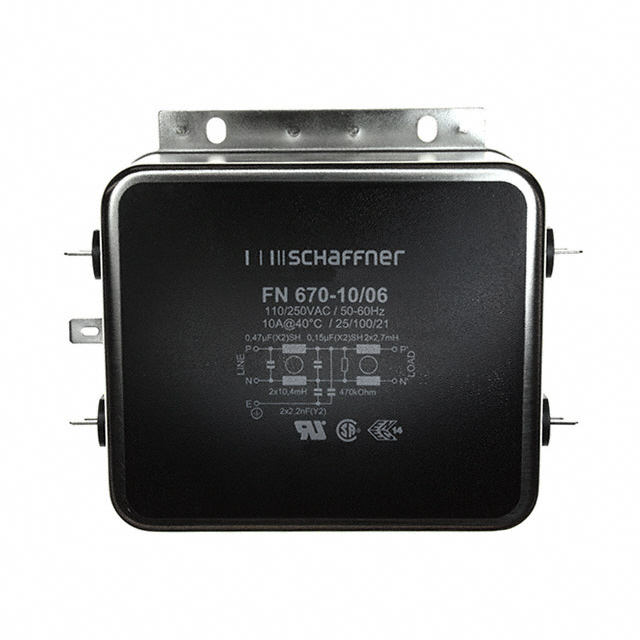

The Schaffner FN670-10-06 is a single-phase, two-stage power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 10 A at a working frequency of 60 Hz. The component utilizes quick connect terminals for electrical interface. Key electrical specifications include a maximum leakage current of 190 uA and a capacitance value of 470 nF. This EMI/RFI filter is engineered to suppress electromagnetic interference in AC power circuits.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Chassis mount design for secure installation
- Quick connect terminal configuration for simplified wiring
Applications
- Industrial equipment power input stages
- Medical device power supplies
- Information technology hardware filtering
Procurement Notes
Verify the End of Life status before procurement planning. Confirm that the 250 VAC rating and 10 A current capacity align with the specific circuit requirements. Ensure the chassis mount style and quick connect terminals are compatible with the existing mechanical assembly and wiring harnesses.
Selection Notes
Select this component when a two-stage RFI filter is required for single-phase AC applications. The 10 A rating suits moderate power loads. Verify compatibility with the 250 VAC system voltage. The chassis mount style dictates the enclosure design. Check if the 190 uA leakage current meets safety standards for the intended application.
Part Context
This part belongs to the Schaffner FN670 series of power line filters. The series offers various current ratings and configurations for EMI suppression. The FN670-10-06 specifically addresses the 10 A requirement within this family. It serves as a standard solution for AC power line noise reduction in commercial and industrial settings.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity / Schaffner resources for current alternative components.
