FN680-2.5-06

Description：LINE FLTR 250VAC 2.5A CHASS MNT
Series：FN 680
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:d44c20d8583d Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 250VAC 2.5A CHASS MNT
Series：FN 680
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：2.5 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：16mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN680-2.5-06

Overview

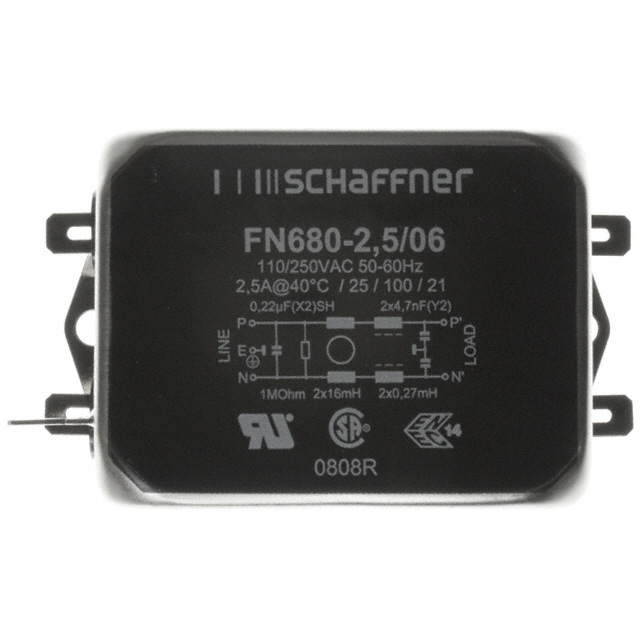

The Schaffner FN680-2.5-06 is a single-phase EMI/RFI power line filter designed for chassis mounting. It supports an AC voltage rating of 110V to 250V and a continuous current capacity of 2.5A. The component operates within a frequency range of DC to 400Hz and features a two-stage filtering configuration with an inductance value of 7.8mH. Termination is achieved via quick-connect terminals, and the unit functions reliably across a temperature range of -25°C to 100°C.

Feature Summary

Provides dual-stage attenuation for effective noise suppression
Engineered for direct chassis panel installation
Utilizes quick-connect termination for simplified wiring

Applications

Industrial control systems requiring EMI protection
Medical equipment power input stages
General purpose electronic instrumentation

Procurement Notes

Verify that the specific part number matches the required electrical ratings, including the 2.5A current limit and 250VAC maximum voltage. Confirm that the chassis mount form factor and quick-connect terminal style align with the target assembly design. Ensure compliance with relevant safety certifications such as CSA, ENEC, and UR before final integration.

Selection Notes

Select this component when a compact, single-phase solution is needed for low-current applications up to 2.5A. The two-stage design offers superior filtering compared to single-stage alternatives. Consider the physical dimensions and mounting requirements for chassis integration. Verify that the operating temperature range meets the environmental conditions of the intended deployment site.

Part Context

This model belongs to the FN680 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series is characterized by its robust construction and suitability for demanding environments. It serves as a specialized component for mitigating electromagnetic interference in power lines where space constraints and high performance are critical priorities.
