FN682-10-06

Overview

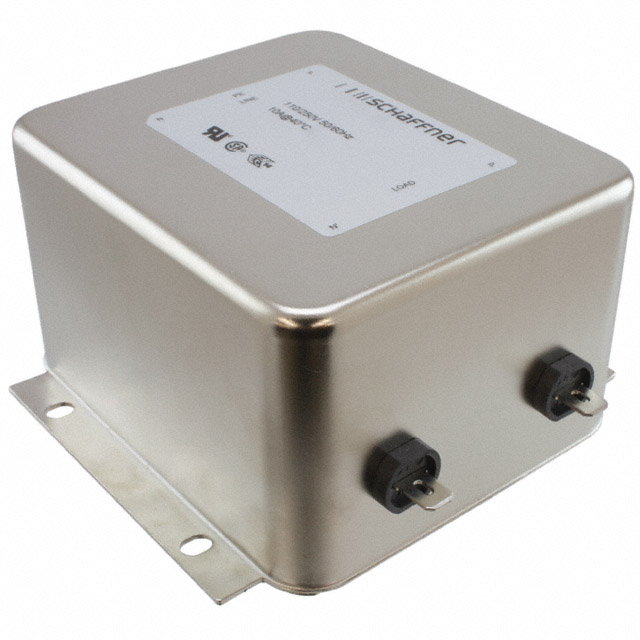

The Schaffner FN682-10-06 is a single-phase, two-stage power line filter designed for chassis mounting. It features a rated current of 10 A and a voltage rating of 250 VAC. The unit utilizes faston terminals for electrical connection and operates within a frequency range up to 400 Hz. This component belongs to the FN 680 series and is manufactured by TE Connectivity / Schaffner.

Feature Summary

• Two-stage filtering architecture for enhanced EMI suppression
• Chassis mount configuration for secure installation
• Faston terminal interface for standard connectivity

Applications

• General EMI filtering in electronic equipment
• Power supply input stages
• Industrial control systems

Procurement Notes

Verify availability status as this part may be discontinued or subject to limited supply. Confirm that the Faston terminal type matches your PCB or wire harness requirements. Ensure the chassis mounting dimensions fit your enclosure design. Check for RoHS compliance documentation if required for your specific application standards.

Selection Notes

Select this model when a two-stage filter is required for 10 A applications at 250 VAC. Consider the chassis mount style and Faston termination against your assembly constraints. Compare with other FN 680 series variants if different current ratings or terminal types are needed. Verify leakage current specifications against safety regulations.

Part Context

This component is part of the Schaffner FN 680 series of power line filters. The series offers various current ratings and configurations for electromagnetic interference suppression. The manufacturer is TE Connectivity / Schaffner, a recognized provider of EMC solutions.

Replacement Considerations

FN2090-4-06 is listed as a potential replacement option.
