FN682-6.5-06

Description：LINE FLTR 250VAC 6.5A CHASS MNT
Series：FN 680
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:19334ae95f45 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 250VAC 6.5A CHASS MNT
Series：FN 680
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6.5 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：4.1mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN682-6.5-06

Overview

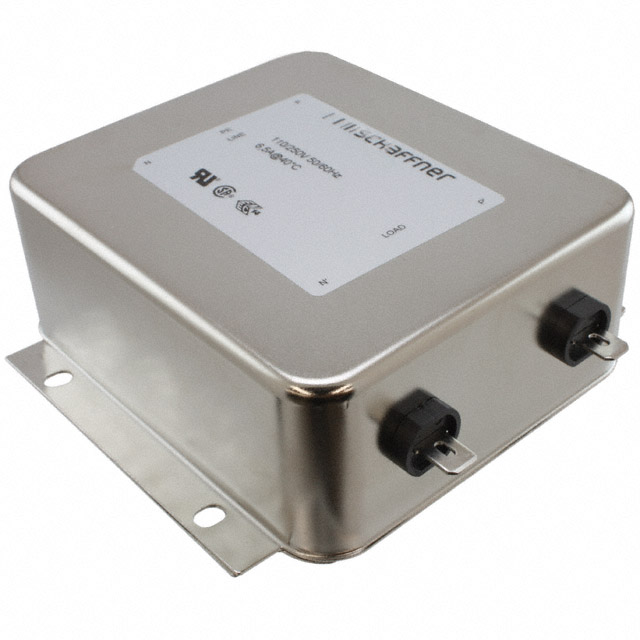

The Schaffner FN682-6.5-06 is a single-phase power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 6.5 A. The unit utilizes faston terminals for electrical connection and operates within a frequency range up to 400 Hz. This component belongs to the FN 680 series, providing electromagnetic interference suppression for AC power inputs in electronic equipment.

Feature Summary

Provides two-stage filtering configuration for enhanced noise attenuation
Designed for secure chassis mounting installation
Utilizes faston terminal connections for circuit integration

Applications

Single-phase AC power input protection
Electromagnetic interference suppression in electronic devices
Chassis-mounted power conditioning systems

Procurement Notes

Verify the exact part number against official TE Connectivity / Schaffner documentation before procurement. Confirm that the faston terminal type matches your circuit board requirements. Check for specific RoHS compliance declarations if required by your manufacturing standards. Ensure the chassis mounting dimensions fit your enclosure design constraints prior to ordering.

Selection Notes

Select this model when a single-phase filter with a 6.5 A current capacity is required. The 250 VAC rating suits standard commercial and industrial AC mains applications. Consider the faston termination style for direct PCB or wire harness attachment. Verify that the chassis mount form factor aligns with your system's physical layout and thermal management needs.

Part Context

This component is part of the FN 680 series from Schaffner, which specializes in single-phase power line filters. The series offers various current ratings and configurations for EMI/EMC suppression. The FN682 variant specifically denotes a two-stage filter design intended for robust noise reduction in sensitive electronic environments requiring reliable power line conditioning.
