FN686-36-23

Overview

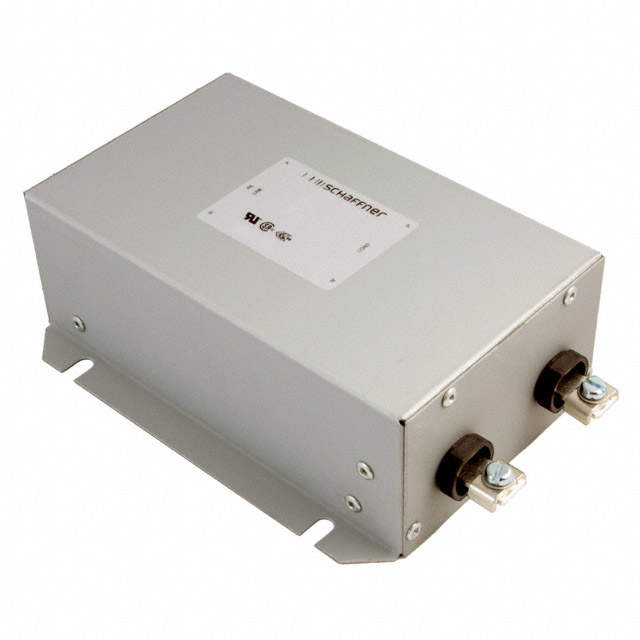

The FN686-36-23 is a two-stage power line filter manufactured by Schaffner EMC Inc. It features a chassis mount design with clamp terminals for secure installation. The component is rated for a continuous current of 36A and operates at voltages up to 250VAC. It supports frequency ranges from DC to 400Hz, making it suitable for various industrial applications. The unit complies with RoHS standards, ensuring environmental safety. Its general-purpose classification indicates broad utility in electromagnetic interference suppression for power systems.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount configuration with clamp terminal connections
• RoHS compliant construction for environmental regulation adherence

Applications

• General purpose electromagnetic interference suppression
• Industrial power system protection
• Equipment requiring DC to 400Hz operation

Procurement Notes

Verify the specific datasheet version corresponding to the suffix -23 to confirm terminal type and mounting dimensions. Ensure the application voltage does not exceed 250VAC and current remains within the 36A limit. Confirm RoHS compliance requirements match project specifications. Check for any regional certification marks required for final equipment assembly. Validate that clamp terminals are compatible with existing busbar or cable configurations.

Selection Notes

Select this model when a two-stage filter is required for currents up to 36A. The clamp terminal option simplifies assembly compared to screw terminals. Consider the operating temperature range of -25°C to 100°C for environmental suitability. Verify space constraints for chassis mounting. Compare against other FN686 variants if different current ratings or terminal styles are needed.

Part Context

This component belongs to the FN686 family of power line filters from Schaffner EMC Inc. The series offers various current ratings and terminal options. The FN686-36-23 specifically denotes the 36A rating and clamp terminal configuration. This family is designed for robust EMI suppression in demanding environments.

Replacement Considerations

Check for exact pinout and dimension compatibility before substituting. Verify that alternative models maintain the same two-stage filtering performance and 36A current capacity. Ensure the replacement supports the same voltage and frequency ranges.
