FN700Z-10-06

Overview

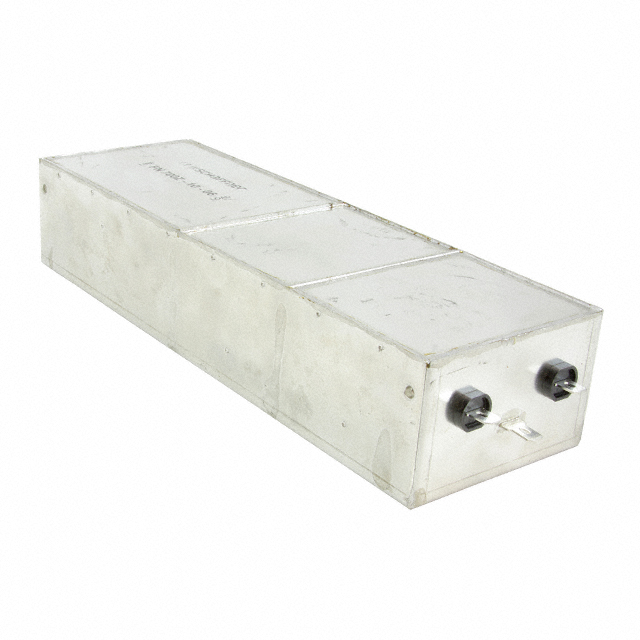

The FN700Z-10-06 is a single-phase EMI/EMC power line filter module from the Schaffner FN700Z series. It features a three-stage LC filter topology designed for effective noise attenuation in AC power circuits. The component supports a rated voltage of 250 VAC and handles a continuous current of 10 A. It utilizes quick-connect terminals for rapid assembly and chassis mounting for secure installation. The unit operates within a frequency range of 0 Hz to 400 Hz, ensuring compatibility with standard and variable frequency power systems.

Feature Summary

• Three-stage filtering architecture for enhanced electromagnetic interference suppression
• Quick-connect terminal interface for simplified wiring integration
• Chassis mount design for robust mechanical stability
• Single-phase configuration optimized for AC power line applications

Applications

• Power supply units requiring EMI mitigation
• Battery charger systems
• Portable electronic devices
• Energy-efficient industrial equipment

Procurement Notes

Verify that the specific ordering suffix matches the required terminal type and current rating. Confirm chassis mounting dimensions align with the enclosure design. Ensure the input voltage does not exceed the 250 VAC rating. Check compliance documentation such as UL or IEC standards if required for the final product certification. Validate the quick-connect pin specifications against the mating connector.

Selection Notes

Select this model when a compact, single-phase solution is needed for moderate current loads up to 10 A. The three-stage design offers superior attenuation compared to basic two-stage filters. Consider the quick-connect feature if space constraints prevent screw-terminal usage. Evaluate the chassis mount requirement against available panel space. Compare leakage current specifications if sensitive medical or precision equipment is involved.

Part Context

This component belongs to the FN700Z series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is engineered for general-purpose EMI suppression in AC power lines. The FN700Z-10-06 specifically targets applications requiring reliable noise reduction in a small form factor. It complements other series like the FN7660 for higher current or different mounting requirements.

Replacement Considerations

Direct substitutes may include other models within the FN700Z series with different current ratings, such as the FN700Z-20-03 for higher capacity. Cross-reference with similar single-phase three-stage filters from other manufacturers only if electrical parameters and mounting styles are identical. Verify that any replacement maintains the same quick-connect terminal configuration to avoid rewiring.
