Product Detailed Parameters
- Description：LINE FILTER 250VAC 20A CHASS MNT
- Series：FN 700Z
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：20 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：60µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

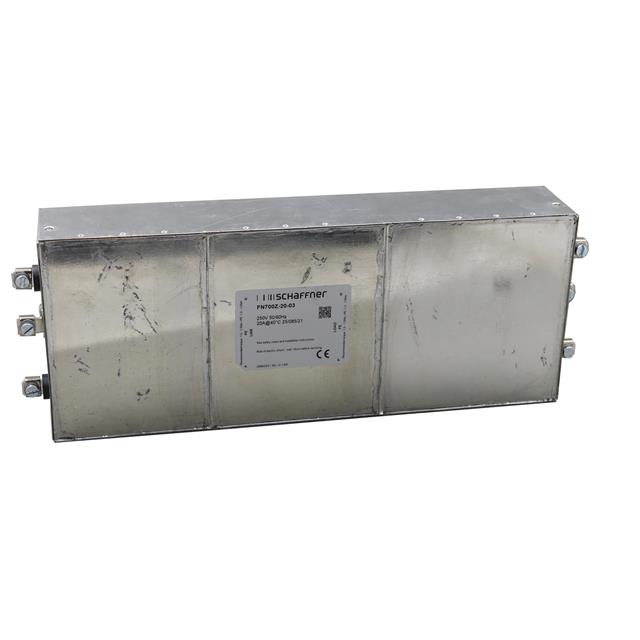

The FN700Z-20-03 is a single-phase AC power line filter manufactured by Schaffner EMC Inc. It features a three-stage NEMP filtering configuration designed for chassis mounting. The unit supports a rated current of 20 A and operates with AC voltages up to 250 VAC. Connection is achieved via M4 screw clamp terminals, ensuring secure electrical contact. This component is engineered for electromagnetic compatibility applications within industrial and commercial equipment environments.
Feature Summary
- Three-stage NEMP filtering architecture for enhanced noise suppression
- M4 screw clamp terminal connections for reliable installation
- Chassis mount design for structural integration
Applications
- Industrial machinery control panels
- Commercial power distribution units
- Electromagnetic compatibility testing setups
Procurement Notes
Verify the specific voltage and current ratings against your system requirements before ordering. Confirm that the M4 screw clamp connection type matches your wiring infrastructure. Ensure the chassis mounting dimensions fit your enclosure layout. Check for any regional certification requirements such as UL or CE if applicable to your deployment region.
Selection Notes
Select this model when high attenuation is required in compact spaces. The three-stage design offers superior performance compared to single-stage alternatives. Consider the physical size constraints of your chassis installation. Evaluate the thermal environment to ensure operation within specified temperature limits.
Part Context
This component belongs to the FN700Z series of AC power line filters from Schaffner EMC Inc. The series is known for robust construction and effective EMI/RFI suppression. It serves as a critical interface between power sources and sensitive electronic loads, maintaining signal integrity in noisy environments.
Replacement Considerations
Direct substitutes may include other Schaffner models with similar current ratings and terminal types. Verify mechanical dimensions and pinout compatibility before swapping. Consult manufacturer cross-reference lists for approved equivalents.
