FN700Z-6-06

Overview

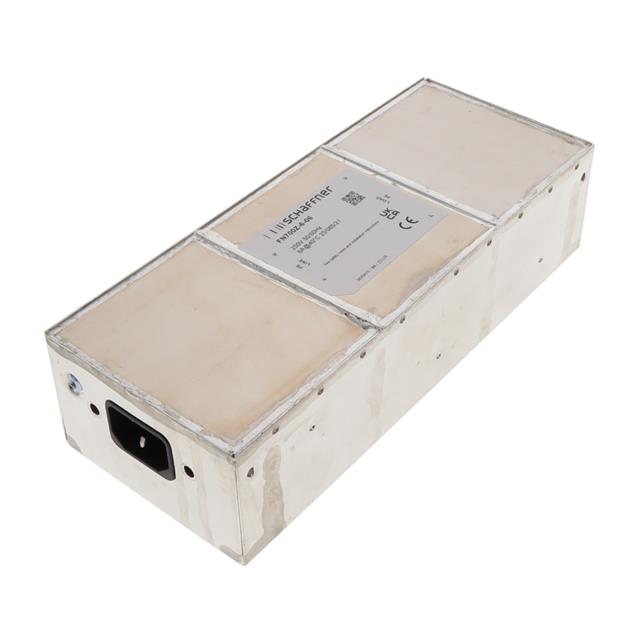

The FN700Z-6-06 is a single-phase EMC/EMI power line filter from the Schaffner FN700Z series, manufactured by TE Connectivity. It features a three-stage filtering configuration designed for chassis mounting with fast-on terminals. The unit supports an AC voltage rating of 250 VAC and a continuous current capacity of 6 A. Operating within a frequency range of 0 Hz to 400 Hz, it includes integrated surge protection capabilities. Key electrical specifications include a maximum leakage current of 2.3 mA. The component complies with UL, CSA, and IEC/EN standards.

Feature Summary

• Three-stage filtering architecture for enhanced noise attenuation
• Integrated surge protection functionality
• Chassis mount design with fast-on termination style

Applications

• Industrial equipment EMI suppression
• Medical device power input protection
• General purpose single-phase AC power conditioning

Procurement Notes

Verify the specific terminal type and mounting hardware requirements against the official datasheet before procurement. Confirm compliance certifications such as UL and CSA are required for the target market. Ensure the operating temperature range of -25°C to +100°C aligns with the application environment. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Selection Notes

Select this component when a single-phase filter with high attenuation and surge protection is required. The 6 A rating suits moderate power applications. The three-stage design offers superior performance compared to single-stage alternatives. Consider the chassis mount form factor for panel integration. Verify that the fast-on terminals match the available connector options in the system design.

Part Context

This filter belongs to the FN700Z series, which specializes in single-phase applications requiring robust EMI/RFI suppression. The series is characterized by its compact chassis-mountable design and integrated safety features. It serves as a critical component for ensuring electromagnetic compatibility in sensitive electronic systems powered by single-phase AC sources.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's cross-reference guide for verified equivalents.
