FN7510-10-M3

Overview

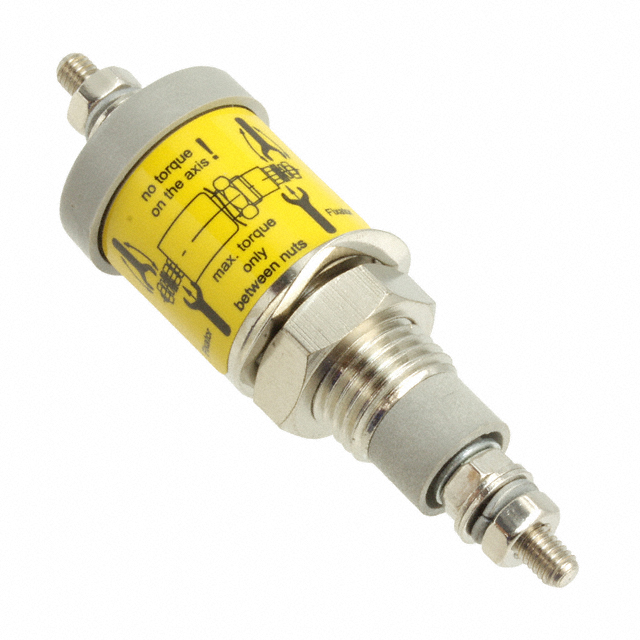

The Schaffner EMC Inc. FN7510-10-M3 is an axial feedthrough EMI filter capacitor designed for high-voltage applications. It features a capacitance of 2200 pF and a rated voltage of 1 kV (1000 V). The component utilizes an M4 threaded terminal configuration for secure mounting. It operates within a temperature range of -40°C to +100°C and weighs approximately 15 grams. This device serves as a single-channel low-pass filter for suppressing electromagnetic interference in power lines.

Feature Summary

• Provides effective suppression of electromagnetic interference through axial feedthrough architecture
• Supports high-voltage operation up to 1000 V with robust thermal stability
• Features durable M4 threaded terminals for reliable mechanical integration

Applications

• Medical device power line filtering
• Industrial equipment EMI suppression
• High-voltage DC/AC circuit protection

Procurement Notes

Verify the specific suffix designation against official TE Connectivity/Schaffner documentation to confirm terminal type and capacitance tolerance. Ensure the procurement source provides valid RoHS compliance declarations and original manufacturer traceability. Cross-reference the part number alias 801808-SF if applicable to your supply chain requirements.

Selection Notes

Select this component when a compact, high-voltage feedthrough solution is required for single-line noise attenuation. The M4 thread size dictates the panel cutout and nut specifications. Confirm that the 2200 pF capacitance value aligns with the target frequency spectrum for interference reduction without affecting the primary power signal integrity.

Part Context

This component belongs to the FN751x series of EMI feedthrough capacitors manufactured by TE Connectivity under the Schaffner brand. The series is engineered for chassis-mounted installations where space efficiency and high isolation voltage are critical. It complements other series like FN7612 for comprehensive filtering strategies.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided reference data. Verify compatibility with existing mounting hardware before considering alternative models from the same family.
