FN7512-63-M6

Overview

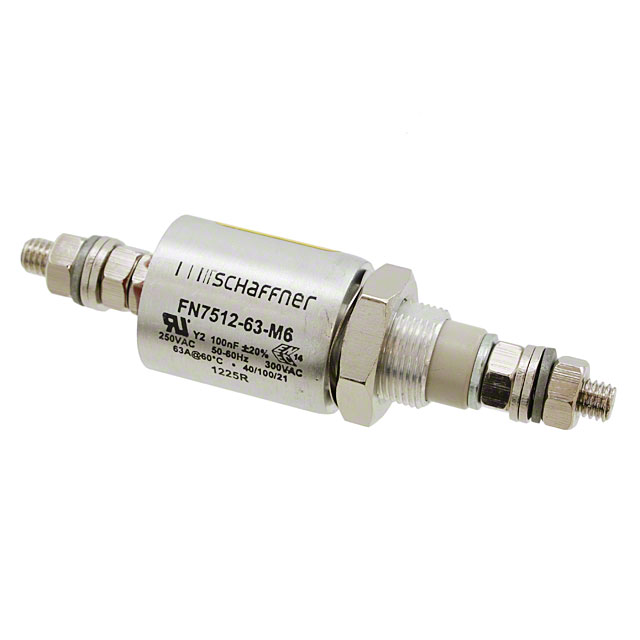

The Schaffner FN7512-63-M6 is a panel-mount feedthrough capacitor designed for electromagnetic interference suppression. It features an axial threaded terminal configuration with M6 thread size. The component has a capacitance of 0.1 µF with a 20% tolerance and a rated voltage of 1 kV DC or 100 V AC. It supports a continuous current of 63 A and exhibits a typical resistance of 0.3 mΩ. The unit operates within a temperature range of -40°C to +100°C and weighs approximately 70 g.

Feature Summary

• Provides effective high-frequency noise attenuation through low-inductance feedthrough architecture
• Features robust axial threaded terminals for secure mechanical mounting on panels
• Capable of handling high continuous currents while maintaining low impedance characteristics

Applications

• Power supply input filtering
• Battery charger circuits
• Portable electronic device power lines
• Energy-efficient system power distribution

Procurement Notes

Verify the specific datasheet version for the FN7512-63-M6, as some sources may reference similar models like FN7561. Confirm that the 1 kV rating aligns with your circuit requirements. Ensure the M6 threading matches your panel cutout specifications. Check RoHS compliance status if required by your manufacturing standards. Validate the 63 A current rating against peak load conditions.

Selection Notes

Select this component when high-current DC filtering is required in compact spaces. The 0.1 µF value offers a balance between capacitance and physical size. The 1 kV rating provides safety margin for various DC bus voltages. Consider the axial form factor for direct panel penetration installation. Ensure the operating temperature range meets environmental demands.

Part Context

This part belongs to the Schaffner FN751X series of feedthrough capacitors. These components are engineered for EMI suppression in power electronics. The series utilizes ceramic dielectric materials for stable performance. The design emphasizes low parasitic inductance for high-frequency effectiveness.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
