FN7513-16-M4

Overview

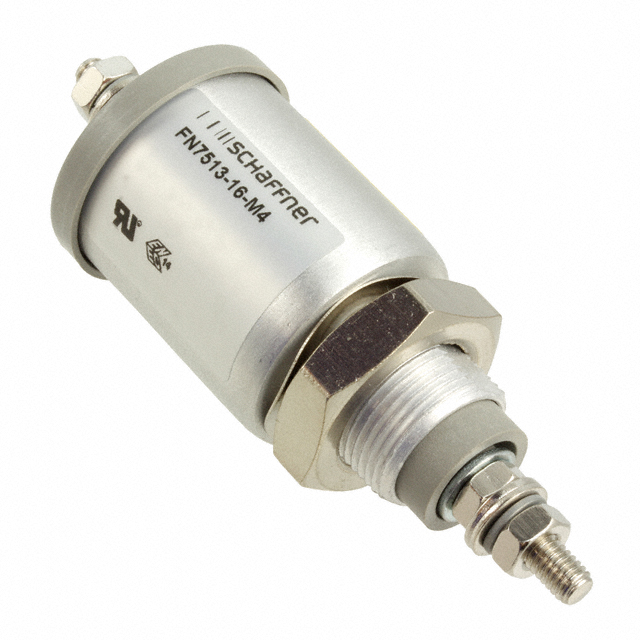

The Schaffner FN7513-16-M4 is a single-phase feedthrough capacitor from the FN 751X series, designed for panel mounting. It features a capacitance of 100 nF with a 20% tolerance and an AC voltage rating of 100 V (with a DC rating of 1000 V). The component supports a continuous current of 16 A and has a low resistance of 0.3 mΩ. It operates within a temperature range of -40°C to +100°C and utilizes an M4 threaded stud terminal.

Feature Summary

• Provides effective electromagnetic interference suppression through high-capacitance feedthrough design
• Features robust panel-mount construction with threaded stud terminals for secure installation
• Designed for high-current applications with low internal resistance

Applications

• Computer server power filtering
• Medical equipment EMI suppression
• Industrial control systems

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity or Schaffner documentation to ensure authenticity. Confirm that the M4 thread specification matches your chassis requirements. Check for RoHS compliance status in the latest datasheet. Ensure the operating voltage and current ratings align with your system's electrical parameters before procurement.

Selection Notes

Select this component when a single-phase feedthrough capacitor is required for high-current circuits up to 16 A. The M4 terminal size dictates the mounting hole specification. Consider the 100 nF capacitance value for the intended noise filtering frequency range. Verify that the 100°C maximum operating temperature suits the environmental conditions of the installation site.

Part Context

This component belongs to the Schaffner FN 751X series of feedthrough EMC filters. These components are engineered for direct panel mounting, offering superior shielding effectiveness compared to standard capacitors. The series is widely used in environments requiring strict electromagnetic compatibility standards for sensitive electronic equipment.

Replacement Considerations

Cross-reference with other FN751X variants if different current ratings or terminal sizes are needed. Ensure any substitute maintains the same M4 thread pitch and panel thickness compatibility. Verify that alternative parts meet the same 100 nF capacitance and 16 A current specifications.
