FN7514-32-M4

Overview

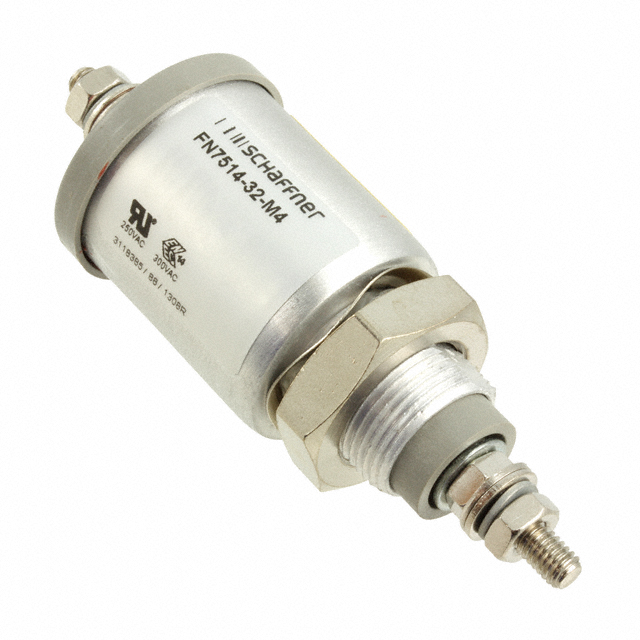

The Schaffner EMC Inc. FN7514-32-M4 is an axial feedthrough capacitor designed for electromagnetic interference suppression in single-phase AC applications. It features a capacitance of 0.1 µF with a tolerance of ±20% and a rated voltage of 1000 V (1 kV). The component supports a continuous current rating of 32 A and utilizes M4 threaded terminals for secure mounting. It operates within a temperature range of -40°C to +100°C, ensuring reliability in demanding environments.

Feature Summary

• Provides effective high-frequency noise attenuation through axial feedthrough architecture
• Supports high continuous current loads up to 32 Amperes
• Features robust M4 threaded terminal connections for mechanical stability

Applications

• Computer server power distribution units
• Medical equipment power supplies
• Battery charger systems
• Energy-efficient industrial power systems

Procurement Notes

Verify the specific datasheet version for the FN7514-32-M4 to confirm RoHS compliance status and exact physical dimensions before integration. Ensure that the M4 threading matches the panel cutout specifications. Cross-reference the 32A current rating against peak load requirements to prevent thermal degradation during operation.

Selection Notes

Select this component when a single-phase feedthrough filter is required for high-current applications up to 32A. The 0.1 µF capacitance offers a balance between filtering performance and size constraints. Verify compatibility with 1000V rated circuits and ensure the operating environment stays within the specified -40°C to +100°C range for optimal longevity.

Part Context

This part belongs to the FN751x series of EMI feedthrough capacitors from TE Connectivity / Schaffner. These components are engineered for direct panel mounting via threaded terminals, providing a low-inductance path for noise dissipation. The series is widely recognized for its compact axial design suitable for space-constrained electronic enclosures.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify electrical equivalence if considering alternatives from other manufacturers.
