FN7561-200-M10

Overview

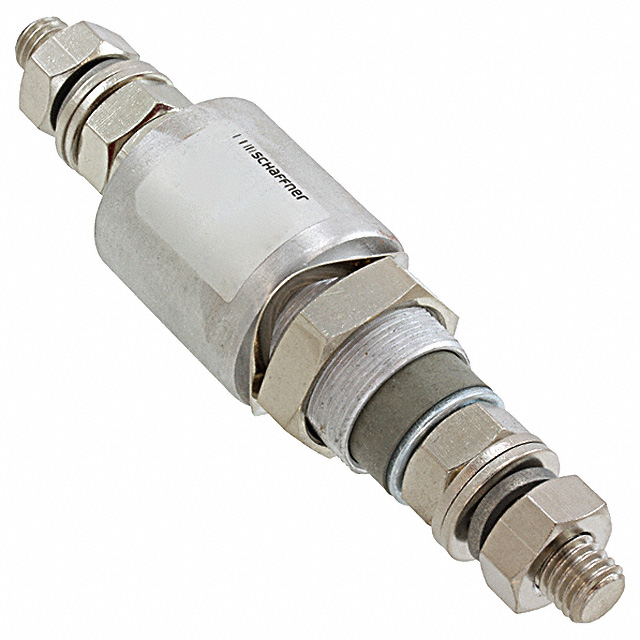

The FN7561-200-M10 is a single-phase feed-through capacitor manufactured by Schaffner EMC Inc. It features a capacitance of 0.47 µF with a ±20% tolerance and a rated voltage of 650 V. The component supports a current rating of 200 A and operates within a temperature range of -40°C to 100°C. It utilizes axial threaded terminals for bolt installation and measures 38.00 mm in diameter by 150.00 mm in length.

Feature Summary

• Provides high-frequency electromagnetic interference suppression through feed-through capacitor technology
• Designed for robust performance in high-current applications up to 200 A
• Constructed with axial threaded terminals for secure bolt mounting

Applications

• Computer server power distribution
• Medical equipment filtering
• Power supply input stages
• Battery charger circuits

Procurement Notes

Verify the specific ordering suffix M10 corresponds to the required terminal configuration and package dimensions. Confirm that the 650 V rating and 200 A current capacity align with the system design requirements. Check for RoHS compliance status if environmental regulations apply to the final assembly. Ensure the axial threaded terminal style matches the available mounting hardware in the target enclosure.

Selection Notes

Select this component when high current handling and effective EMI attenuation are required in a compact axial form factor. The 0.47 µF capacitance offers a balance between noise suppression and physical size. Consider the 650 V rating for systems operating at lower voltages but requiring higher safety margins. The bolt-on installation method suits heavy-duty industrial or infrastructure environments where vibration resistance is critical.

Part Context

This part belongs to the FN7561 series of feed-through capacitors from Schaffner EMC Inc. These components are engineered for electromagnetic compatibility in demanding electronic environments. The series is commonly integrated into power lines to mitigate conducted emissions. The product falls under the broader category of passive filtering components used in EMC design.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
