Product Detailed Parameters
- Description：CAP FEEDTHRU 650V AXIAL
- Series：FN 756X
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Voltage - Rated：650V
- Current：30 A
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：-
- Package / Case：Axial - Threaded Terminals
- Size / Dimension：-
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：Y4
- Height (Max)：-
- Thread Size：-
Download product information
Overview

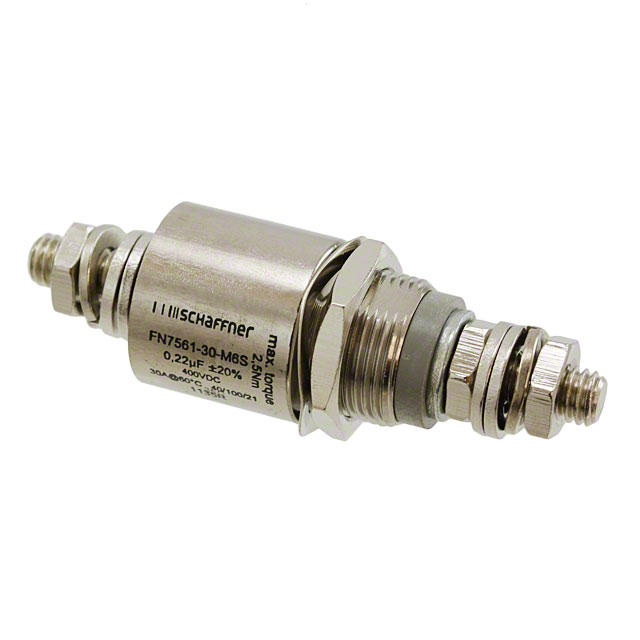

The Schaffner EMC Inc. FN7561-30-M6S is a DC feedthrough capacitor designed for electromagnetic interference suppression. It features an M6 threaded terminal configuration and supports a rated current of 30 A with a maximum voltage rating of 650 V. The component operates within a temperature range of -40°C to +100°C and complies with RoHS standards.
Feature Summary
- Provides effective high-frequency noise attenuation through direct cable penetration mounting
- Utilizes robust M6 threaded terminal design for secure mechanical integration
- Engineered for stable performance in demanding thermal environments
Applications
- Power supply input filtering for industrial equipment
- Electromagnetic compatibility enhancement in medical devices
- Noise suppression in computer server power lines
Procurement Notes
Verify the specific suffix 'S' against official TE Connectivity or Schaffner documentation to confirm exact capacitance tolerance and marking variations. Ensure the M6 thread pitch matches the installation panel requirements. Confirm RoHS compliance status directly from the manufacturer's latest declaration before finalizing procurement specifications.
Selection Notes
Select this component when a single-phase DC feedthrough filter is required for currents up to 30 A. The M6 terminal size dictates the necessary panel hole diameter and nut specifications. Consider the 650 V rating to ensure adequate safety margins for the specific DC bus voltage application.
Part Context
This part belongs to the FN7561 series of EMI feedthrough capacitors manufactured by Schaffner, now part of TE Connectivity. These components are widely used in power electronics to suppress conducted emissions on DC lines, offering a compact solution for chassis or panel mounting applications requiring high current handling capabilities.
Replacement Considerations
Publicly confirmed substitute part numbers for FN7561-30-M6S were not identified in the provided source material. Cross-referencing with similar M6 feedthrough capacitors requires careful verification of electrical ratings and physical dimensions.
