FN7562-16-M4

Overview

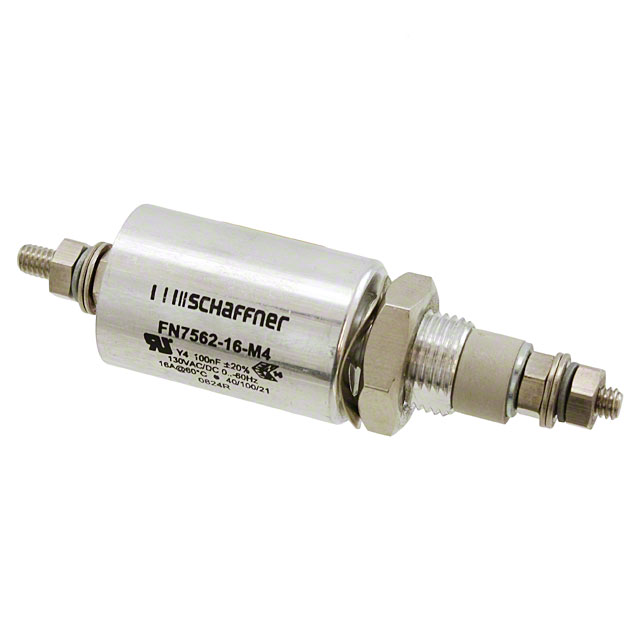

The Schaffner FN7562-16-M4 is a single-phase axial feedthrough capacitor designed for EMI suppression. It features a capacitance of 0.1 µF with a tolerance of ±20%. The component supports a DC voltage rating of 650 V and an AC voltage rating of 130 V. Rated for a continuous current of 16 A, it operates within a temperature range of -40°C to +100°C. The unit utilizes M4 threaded terminals for secure mounting.

Feature Summary

• Provides effective electromagnetic interference attenuation through axial feedthrough construction
• Supports high-voltage DC and AC applications in single-phase circuits
• Enables direct panel or chassis mounting via integrated threaded terminals

Applications

• Computer server power filtering
• Medical equipment signal conditioning
• Industrial control system noise suppression

Procurement Notes

Verify the specific suffix M4 confirms the terminal thread specification against the manufacturer datasheet. Confirm the capacitance tolerance and voltage ratings match the circuit requirements. Ensure the operating temperature range covers the intended environmental conditions. Cross-reference the part number with TE Connectivity Schaffner official documentation to validate authenticity and specifications.

Selection Notes

Select this component when a single-phase feedthrough configuration is required for high-frequency noise reduction. The 16 A current rating suits moderate power applications. Verify that the axial form factor fits the available panel space. Ensure the 650 V DC rating exceeds the maximum circuit voltage to maintain safety margins.

Part Context

This component belongs to the FN7562 series of feedthrough capacitors from Schaffner EMC Inc. The series is engineered for robust EMI/RFI suppression in demanding environments. These components are widely used in industrial and medical sectors where reliable noise filtration is critical for system stability and compliance.

Replacement Considerations

The FN7562-32-M4 is a documented variant within the same series offering higher current capacity. Verify compatibility before substitution as electrical ratings differ.
