FN7562-200-M10

Overview

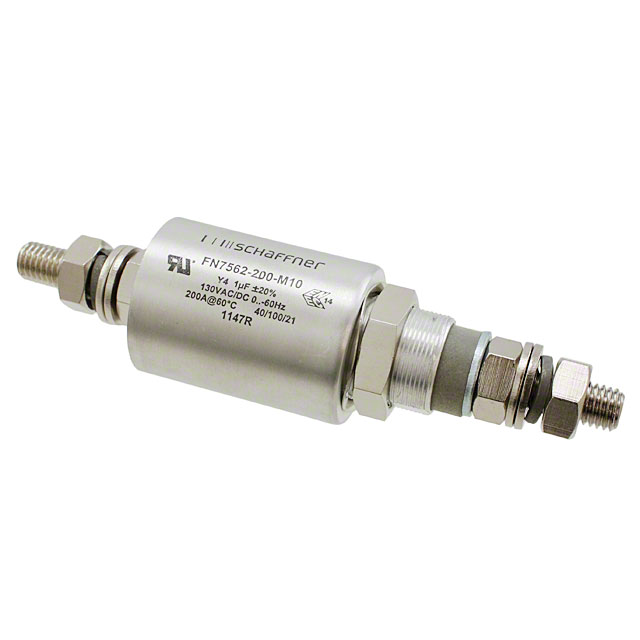

The FN7562-200-M10 is a feedthrough EMI/RFI filter manufactured by Schaffner EMC Inc. It features a capacitance of 1.0µF and supports a current rating of 200A with a voltage rating of 130V. The component utilizes axial threaded terminals for installation.

Feature Summary

• Provides electromagnetic interference suppression through feedthrough capacitor technology
• Designed for high-current applications requiring robust filtering capabilities

Applications

• Medical devices
• Industrial power systems
• High-current DC or AC line filtering

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement, as manufacturing statuses can change. Confirm that the axial threaded terminal configuration matches your mechanical assembly requirements. Ensure the 200A current rating and 130V voltage specifications align with your system's operational limits to prevent component failure.

Selection Notes

Select this component when high-capacitance filtering is required for high-current circuits. The feedthrough design offers superior performance compared to standard discrete capacitors in EMI suppression scenarios. Ensure the mounting environment accommodates the thermal and mechanical characteristics of a 200A rated feedthrough capacitor.

Part Context

This part belongs to the FN 756X series of feedthrough filters from Schaffner. These components are engineered for demanding EMC applications where space constraints and high current handling are critical factors. The series is widely used in sectors requiring strict adherence to electromagnetic compatibility standards.

Replacement Considerations

FN7563-200-M10 is listed as an obsolete substitute option.
