Product Detailed Parameters
- Description：CAP FEEDTHRU 0.1UF 650V AXIAL
- Series：FN 756X
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Voltage - Rated：650V
- Current：32 A
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Bolt Mount
- Package / Case：Axial - Threaded Terminals
- Size / Dimension：0.787" Dia x 1.654" L (20.00mm x 42.00mm)
- Capacitance：0.1 µF
- Tolerance：±20%
- DC Resistance (DCR) (Max)：0.62mOhm (Typ)
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：Y4
- Height (Max)：-
- Thread Size：-
Download product information
Overview

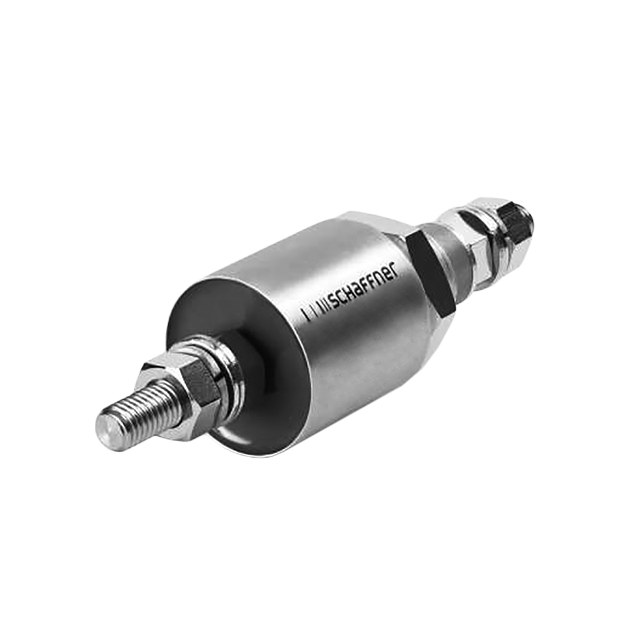

The FN7562-32-M4 is a single-phase EMI feedthrough capacitor manufactured by TE Connectivity Schaffner. It features a capacitance of 0.1 µF with a ±20% tolerance and a rated voltage of 650V. The component supports a continuous current of 32 A and exhibits a typical DC resistance of 0.62 mOhm. Designed for axial threaded terminal installation, it operates within a temperature range of -40°C to +100°C. The unit measures 20.00mm in diameter and 42.00mm in length, weighing approximately 15g.
Feature Summary
- Provides high-frequency electromagnetic interference suppression through integrated capacitive filtering.
- Utilizes a robust threaded terminal design suitable for secure panel mounting applications.
- Constructed to meet Y4 safety insulation class requirements for enhanced personnel protection.
Applications
- Computer server power input stages
- Medical equipment internal power distribution
- Industrial control system EMC mitigation
Procurement Notes
Verify the manufacturer part number against official TE Connectivity or Schaffner documentation to ensure authenticity. Confirm that the specific suffix matches the required thread size and electrical ratings. Check RoHS compliance status directly from the latest datasheet revision. Ensure storage conditions align with the specified moisture sensitivity level before assembly.
Selection Notes
Select this component when a single-phase feedthrough filter with 32A capacity is required. The 0.1 µF capacitance offers specific attenuation characteristics compared to other values in the FN756x series. Ensure the mounting hole diameter accommodates the M4 threaded terminal. Verify that the 650V rating exceeds the maximum circuit voltage including transients.
Part Context
This component belongs to the FN756x series of feedthrough filters, which are designed for direct panel mounting. The series provides compact solutions for noise suppression in space-constrained environments. The M4 designation indicates the specific thread size for the axial terminals, distinguishing it from other variants in the family.
Replacement Considerations
The FN7510-32-M4 is a related variant within the same product family but differs in internal circuit topology and performance specifications. Substitution requires verification of electrical parameters and mechanical fit. Consult official cross-reference guides for confirmed equivalent parts.
