FN7563-100-M8

Overview

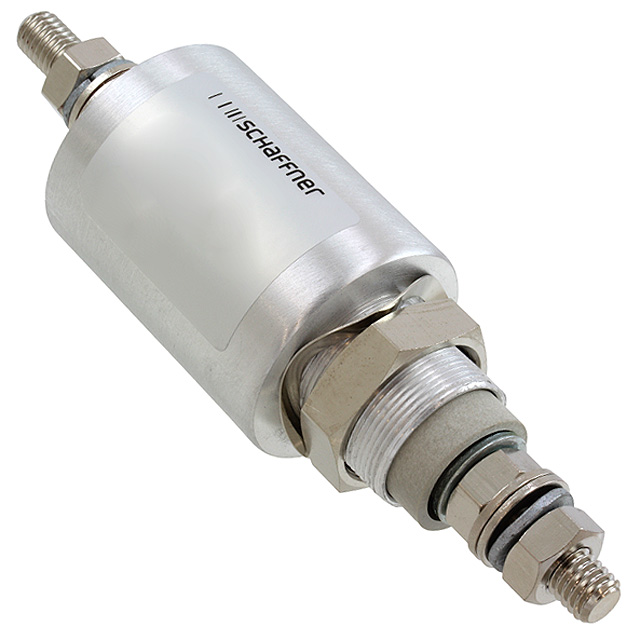

The Schaffner FN7563-100-M8 is a DC feedthrough capacitor designed for electromagnetic interference suppression. It features a capacitance of 1 µF with a voltage rating of 650V and handles a current of 100 A. The component utilizes axial threaded terminals (M8) for mounting. Its typical resistance is 0.25 mOhm, and it operates within a temperature range of -40°C to +100°C.

Feature Summary

• Provides high-capacitance EMI filtering for DC power lines
• Supports high current loads up to 100 A
• Utilizes robust axial threaded terminal construction

Applications

• Medical device power supplies
• Industrial equipment EMC compliance
• High-power DC distribution systems

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before procurement. Confirm that the M8 threaded terminal size matches your panel cutout dimensions. Ensure the operating temperature range aligns with your environmental conditions. Check for RoHS compliance status if required by your manufacturing standards. Validate the package quantity and lead times with authorized distributors.

Selection Notes

Select this component when high capacitance is needed for low-frequency noise attenuation in DC circuits. The 650V rating makes it suitable for higher voltage DC applications compared to lower-rated variants. Consider the physical size and mounting constraints associated with the axial threaded design. Compare performance metrics with other FN756X series models if different current or voltage ratings are required.

Part Context

This part belongs to the Schaffner FN756X series of EMI feedthrough capacitors. These components are engineered for effective noise suppression in sensitive electronic environments. The series offers various configurations to meet diverse EMC requirements across industrial and medical sectors.

Replacement Considerations

Check for direct substitutes within the FN756X series with compatible voltage and current ratings. Verify mechanical compatibility of the M8 threading. Ensure electrical parameters such as capacitance and leakage current meet or exceed original specifications.
