FN7610-16-M4

Overview

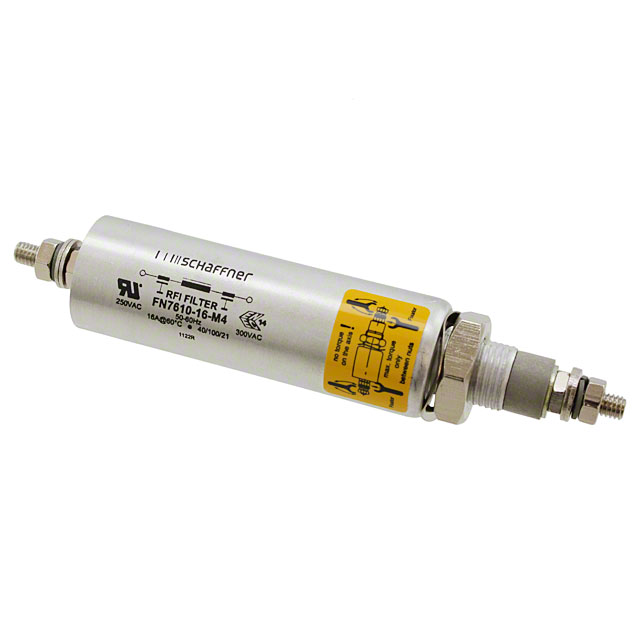

The Schaffner FN7610-16-M4 is an LC (Pi) EMI filter designed for bolt mounting. It features a third-order low-pass topology with L = 70nH and C = 0.1µF. Rated for 16 A current and 250 VAC voltage, it utilizes axial threaded terminals. The unit operates within a temperature range of -40°C to +100°C and measures 20.00mm x 73.00mm.

Feature Summary

• LC (Pi) third-order low-pass filtering topology
• Bolt mount chassis installation with axial threaded terminals
• Designed for data line applications in mobile devices

Applications

• Data lines for mobile devices
• Chassis mounted power conditioning
• EMI suppression in electronic equipment

Procurement Notes

Verify the specific datasheet version for the FN7610-16-M4, as manufacturer documentation may list rated voltages up to 1000V or 130V depending on the revision. Confirm that the axial threaded terminal configuration matches your chassis mounting requirements. Ensure compliance with RoHS3 standards if required by your assembly specifications.

Selection Notes

Select this component when high-current DC or low-frequency AC data line filtering is required in a compact axial form factor. The LC (Pi) structure provides superior attenuation compared to simple capacitors. Verify that the 16A rating aligns with the maximum expected load current and that the bolt-mount style fits the available panel space.

Part Context

This part belongs to the Schaffner FN761X series of feedthrough filters. These components are engineered for robust electromagnetic interference suppression in industrial and mobile applications. The series offers various current ratings and terminal configurations to suit different chassis integration needs while maintaining consistent performance characteristics.

Replacement Considerations

Publicly confirmed substitute part numbers for FN7610-16-M4 were not identified in the provided source material. Cross-referencing requires matching the LC (Pi) topology, 16A current rating, and axial threaded terminal dimensions.
