FN7610-63-M6

Overview

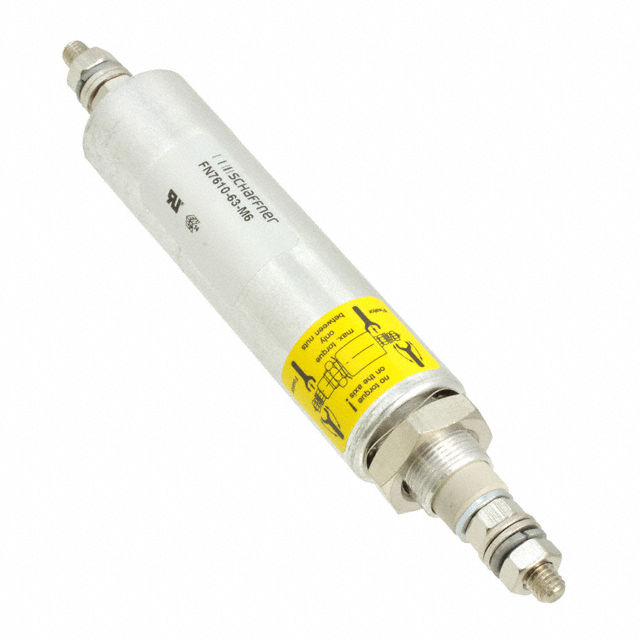

The FN7610-63-M6 is an LC (Pi) EMI feedthrough filter manufactured by Schaffner EMC Inc. It features a third-order low-pass topology with one channel, rated for 63 A maximum DC current and 1000 VAC voltage. The component utilizes axial threaded terminals for bolt mounting. Internal values include an inductance of 186 nH and capacitance of 0.015 µF. Operating temperature ranges from -40°C to +100°C. Physical dimensions are 25.00 mm diameter by 108.00 mm length.

Feature Summary

• LC Pi topology providing third-order attenuation
• High current handling capability up to 63 A
• Axial threaded terminal design for secure panel mounting

Applications

• Mobile device data lines
• Power line filtering applications
• EMI suppression in electronic equipment

Procurement Notes

Verify the specific datasheet version for the FN7610-63-M6, as distributor listings may contain conflicting electrical parameters such as capacitance or voltage ratings compared to the official Schaffner documentation. Confirm that the 1000 VAC rating and 0.015 µF capacitance align with your system requirements before procurement. Ensure the M6 threaded terminal specification matches your mounting hardware constraints.

Selection Notes

Select this component when high-current DC filtering is required alongside significant EMI attenuation. The LC Pi structure offers superior noise reduction compared to simple capacitors. Verify that the 1000 VAC rating exceeds your system's peak voltage. The axial form factor requires adequate panel depth clearance. Consider thermal management if operating near the upper temperature limit.

Part Context

This part belongs to the FN761X series of EMI feedthrough filters. These components are designed for chassis or panel mounting using threaded studs. The series provides robust electromagnetic interference suppression for power and signal lines in industrial and mobile environments.

Replacement Considerations

Check for direct substitutes within the FN761X series with compatible current and voltage ratings. Verify mechanical compatibility of the M6 threaded terminal. Ensure replacement parts maintain the LC Pi topology and similar attenuation characteristics.
