Product Detailed Parameters
- Description：FILTER LC(PI) 70NH/10000PF BOLT
- Series：FN 761X
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：-
- Resistance - Channel (Ohms)：0.0012
- Values：L = 70nH, C = 10000pF
- ESD Protection：No
- Operating Temperature：-40°C ~ 100°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：1000V (1kV)
- Mounting Type：Bolt Mount
- Package / Case：Axial - Threaded Terminals
- Size / Dimension：0.787" Dia x 2.717" L (20.00mm x 69.00mm)
- Height：-
- Current：10:00 AM
- Grade：-
- Qualification：-
Download product information
Overview

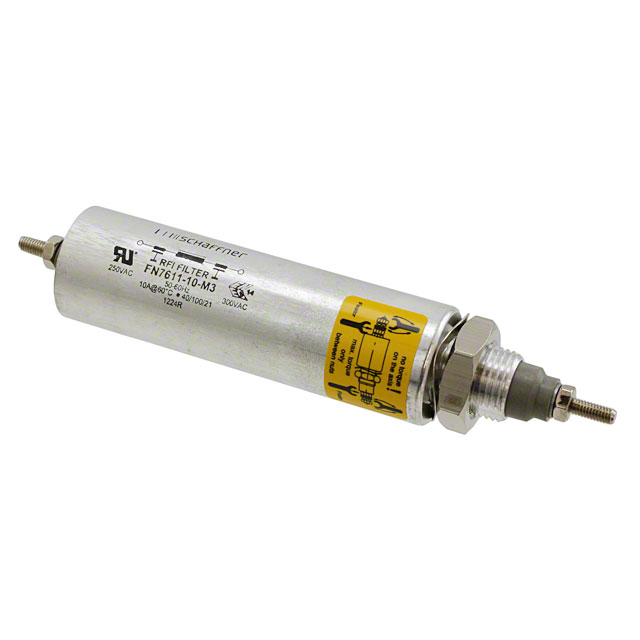

The FN7611-10-M3 is a third-order LC (Pi) low-pass EMI feedthrough filter manufactured by TE Connectivity Schaffner. It features a single channel with an inductance of 70nH and capacitance of 10000pF, rated for 10A DC current and 1000V AC voltage. The component utilizes axial threaded terminals for bolt installation and operates within a temperature range of -40°C to 100°C.
Feature Summary
- Third-order LC Pi topology provides high attenuation performance
- Axial threaded terminal design enables secure bolt mounting
- Low DC resistance minimizes signal loss in data lines
Applications
- Mobile device data lines
- Computer server power and signal filtering
- Medical equipment EMC compliance
Procurement Notes
Verify the manufacturer part number FN7611-10-M3 against official TE Connectivity Schaffner documentation to confirm specifications. Ensure compatibility with existing thermal management and mechanical mounting requirements. Check RoHS3 compliance status if required by project regulations. Confirm lead times and packaging details directly with authorized distributors.
Selection Notes
Select this component when high-frequency noise suppression is critical for sensitive data lines. The 10A rating suits moderate current applications. Compare with FN7612-10-M3 if higher capacitance is needed. Verify that the M3 threaded terminal fits the panel cutout and mounting hardware constraints.
Part Context
Part of the FN761X series of EMI feedthrough filters designed for robust electromagnetic interference suppression. These components are engineered for reliability in demanding electronic environments, offering consistent performance across industrial and medical sectors.
Replacement Considerations
FN7612-10-M3 offers similar form factor but with different capacitance values. Verify electrical parameters before substitution.
FAQ
What is the specific capacitance value of the FN7611-10-M3?
The capacitance is 10000pF.
Does this filter include ESD protection?
No, the component does not include ESD protection.
