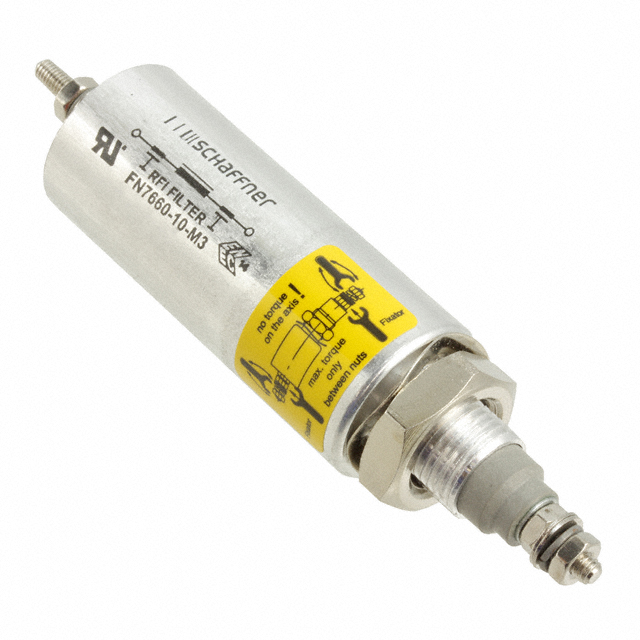

FN7660-10-M3

$107.86

Description：FILTER LC(PI) 58NH/10000PF BOLT
Series：FN 766X
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:743133fd8093 Category: EMI/RFI Filters (LC, RC Networks) Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER LC(PI) 58NH/10000PF BOLT
Series：FN 766X
Mfr：Schaffner EMC Inc.
Package：Tray
Type：Low Pass
Filter Order：3rd
Technology：LC (Pi)
Number of Channels：1
Center / Cutoff Frequency：-
Attenuation Value：-
Resistance - Channel (Ohms)：0.00106
Values：L = 58nH, C = 10000pF
ESD Protection：No
Operating Temperature：-40°C ~ 100°C
Applications：Data Lines for Mobile Devices
Voltage - Rated：130V
Mounting Type：Bolt Mount
Package / Case：Axial - Threaded Terminals
Size / Dimension：0.787" Dia x 2.402" L (20.00mm x 61.00mm)
Height：-
Current：10:00 AM
Grade：-
Qualification：-

Download product information

FN7660-10-M3

Overview

The FN7660-10-M3 is a third-order LC (Pi) low-pass EMI feedthrough filter manufactured by TE Connectivity Schaffner. It features a single channel with an inductance of 58nH and capacitance of 10000pF, rated for 10 A current and 130 V. The component utilizes axial threaded terminals for bolt installation and operates within a temperature range of -40°C to 100°C. Its physical dimensions are 20.00mm diameter by 61.00mm length.

Feature Summary

Third-order LC Pi topology provides high attenuation performance
Axial threaded terminal design enables secure bolt mounting
Low-pass filtering configuration targets specific interference frequencies

Applications

Mobile device data lines
CAT scanners
Defibrillators
Laboratory equipment
X-ray equipment

Procurement Notes

Verify the manufacturer part number against official TE Connectivity Schaffner documentation to ensure authenticity. Confirm that the axial threaded terminal style matches the required chassis or bulkhead mounting specifications. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the 10 A current rating and 130 V voltage limit align with the system's operational requirements before procurement.

Selection Notes

Select this component when high-density EMI suppression is required for sensitive medical or laboratory instrumentation. The LC Pi structure offers superior noise reduction compared to standard filters. Verify that the available mounting space accommodates the specified cylindrical dimensions. Ensure the operating environment remains within the stated temperature limits to maintain filter stability and longevity during continuous operation.

Part Context

This component belongs to the FN 766X series of EMI feedthrough filters designed for critical applications. It serves as a specialized passive component for signal integrity protection in diagnostic imaging and life-support systems. The product is currently active and supported by official datasheets from the manufacturer.
