FN7660-200-M10

Overview

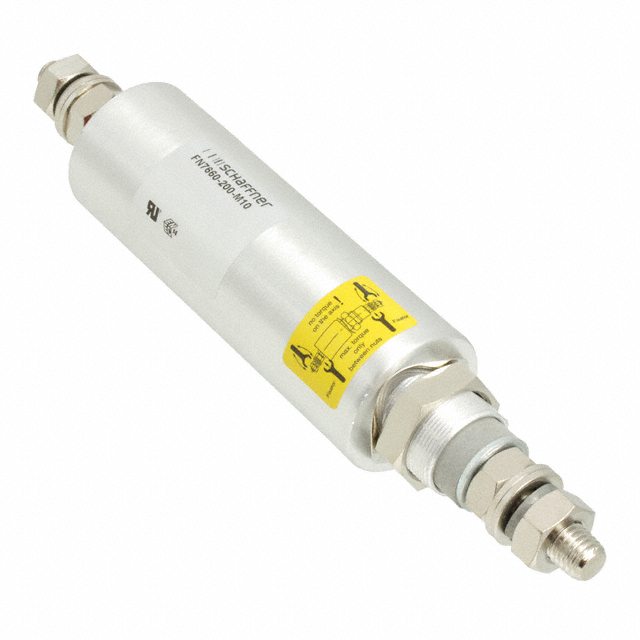

The FN7660-200-M10 is a single-phase LC(Pi) EMI feedthrough filter designed for high-current applications. It features a third-order low-pass configuration with an inductance of 124nH and capacitance of 0.47µF. Rated for 200A continuous current and 130V, it utilizes M10 threaded terminals for secure panel mounting. The component operates within a temperature range of -40°C to 100°C and exhibits a channel resistance of 0.00024 ohms.

Feature Summary

• Provides effective attenuation of electromagnetic interference through a third-order LC Pi network topology.
• Supports high-current power transmission with robust axial threaded terminal connections.
• Engineered for reliable operation across a wide industrial temperature spectrum.

Applications

• Computer server power distribution
• Medical equipment power supplies
• Battery charger systems

Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest datasheet to ensure correct terminal configuration and mounting hardware compatibility. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region and production batch.

Selection Notes

Select this component when high current handling capacity is required alongside significant EMI suppression in a compact bulkhead form factor. Ensure the system voltage does not exceed the 130V rating and that the mounting panel thickness accommodates the M10 terminal geometry for proper sealing and mechanical stability.

Part Context

This part belongs to the Schaffner FN766X series of feedthrough filters, which are specialized for demanding industrial and medical environments. The series emphasizes high reliability and low impedance paths for power lines while maintaining strict electromagnetic compatibility standards for sensitive electronic loads.

Replacement Considerations

Public confirmed substitute part numbers: None identified in source data.
